Allen-Bradley 800K-22FMB24X10 22.5 mm Piezo Push Button
Allen-Bradley 800K-22FMB24X10 22.5 mm Piezo Push ButtonDescriptionPiezo Push Buttons 22.5mm Mounting800K series piezoelectric push buttons features a robust 316 stainless steel body that achieves an IP69K rating. The piezoelectric circuit detects pressure on the surface of the button to provide a momentary actuation signal with no moving parts.22.5 mm mounting...
Allen-Bradley 800K-22FMB24X10 22.5 mm Piezo Push Button
Description
Piezo Push Buttons 22.5mm Mounting
800K series piezoelectric push buttons features a robust 316 stainless steel body that achieves an IP69K rating. The piezoelectric circuit detects pressure on the surface of the button to provide a momentary actuation signal with no moving parts.
22.5 mm mounting hole
IP69K rated
316 stainless steel
Fully potted
24V DC
IP69K rated
316 stainless steel
Fully potted
24V DC

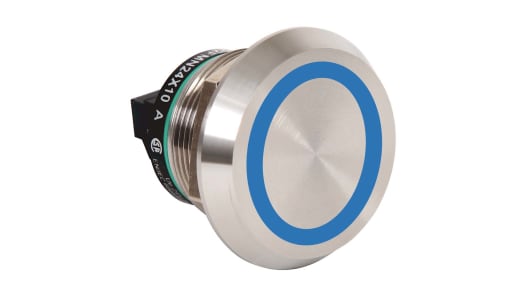

Allen Bradley Push Button, Blue Illuminated, 22mm Cutout - 800K-22FMB24X10
Control functions on your industrial equipment with this illuminated push button switch from Rockwell Automation's Allen Bradley range. It's a piezoelectric device, meaning it detects pressure on its surface, which is used to initiate an action. As this is a momentary switch, it only initiates an action when it's pressed and returns to its original position when it's released. This makes it useful for the safe manual control of devices such as buzzers and conveyors. Buttons like this are commonly found on control panels in automation systems.
• Voltage rating of 24V DC for use in low-voltage applications
• Designed for flush mounting onto your equipment, reducing the risk of dust accumulation for optimal performance
• Screw termination method for simplicity
• Stainless steel body to withstand impact and corrosion for long-term performance
• Blue colour for easy identification
• Designed for flush mounting onto your equipment, reducing the risk of dust accumulation for optimal performance
• Screw termination method for simplicity
• Stainless steel body to withstand impact and corrosion for long-term performance
• Blue colour for easy identification
Standards and Certifications
• UL508
• CSA
• EN IEC 60947
• ECOLAB
• CSA
• EN IEC 60947
• ECOLAB
Can I use this push button outdoors?
Yes, this push button has an IP69K rating, indicating it's fully protected against dust and high-pressure water jets. This means it's suitable for both indoor and outdoor use.
800K Series Pushbuttons and Indicators
Specifications
| Attribute | Value |
| Push Button Colour | Blue |
| Mounting Type | Panel Mount |
| Push Button Diameter | 22.5mm |
| Push Button Material | Stainless Steel |
| Illuminated | Yes |
| Contact Configuration | SPNO |
| Push Button Style | Round |
| Panel Cut Out Diameter | 22mm |
| Series | 800K |
| IP Rating | IP69K |
| Manufacturer Part No. | 800K-22FMB24X10 |
| Minimum Operating Temperature | -25°C |
| Terminal Type | Screw |
| Maximum AC Voltage | 12V |
| Body Material | Polyamide |
| Maximum DC Voltage | 12V |
| Maximum Operating Temperature | +70°C |
