Allen-Bradley 800FP-R611 22mm Reset Push Button 800F PB
Allen-Bradley 800FP-R611 22mm Reset Push Button 800F PBDescription800FP Reset Push ButtonsThe 800FP reset function push button from Allen Bradley can be used as a mechanical and/or electrical reset operator. The operator clearly marked with a with 'R' on a blue background can accept up to 4 single contact blocks or...
Allen-Bradley 800FP-R611 22mm Reset Push Button 800F PB
Description
800FP Reset Push Buttons
The 800FP reset function push button from Allen Bradley can be used as a mechanical and/or electrical reset operator. The operator clearly marked with a with 'R' on a blue background can accept up to 4 single contact blocks or two double contact blocks with no contacts are allowed in the centre position.
Mechanical and/or electrical reset
Blue push button cap with clear white ’R’ marking
Accepts up to 4 single contact blocks
Blue push button cap with clear white ’R’ marking
Accepts up to 4 single contact blocks

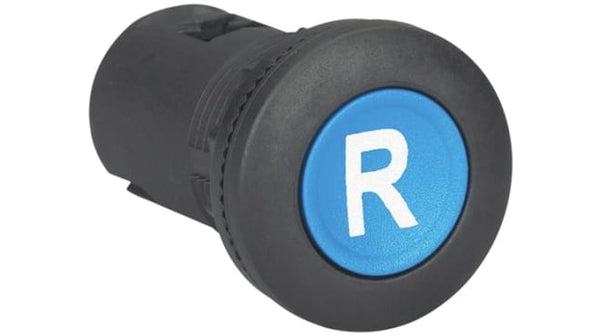

Allen Bradley Push Button Head, 22.5mm Cutout Diameter, Blue - 800FP-R611
Install this push button head from Rockwell Automation's Allen Bradley range in the reset operator of your industrial equipment. As it's made from engineering-grade thermoplastic, it's robust and resistant to impact, chemicals and high temperatures, meaning you can use it in harsh work areas. To ensure correct use, an 'R' on the unit's 22.5mm-wide blue face clearly indicates that it's designed for a reset function, which re-activates mechanical or electrical machinery that has stopped. As this device can accept up to 4 single-contact blocks or 2 double-contact blocks, it's versatile and suitable for various electrical setups.
• 22mm coutout diameter for simple installation on a standard control panel
• Mechanical design life of 10 million cycles, so it's highly reliable
• IP65 rating indicates protection against dust and powerful water jets
• Mechanical design life of 10 million cycles, so it's highly reliable
• IP65 rating indicates protection against dust and powerful water jets
Standards and Certifications
• UL
• UR
• CSA
• CCC
• CE
• UR
• CSA
• CCC
• CE
Can I use this unit in demanding conditions?
Yes. In environments with a temperature range between -25°C and +60°C, this push button head has a maximum operating humidity level of 95% RH, indicating that it's suitable for use in demanding conditions.
The 800FP range from Allen Bradley is a complete array of plastic controls from the 800F 22.5 mm industrial push button series. This range of push buttons and indicators are manufactured from engineering grade thermoplastics to provide a high degree of robustness for use in a wide variety of applications with in the automation and control market.
Specifications
| Attribute | Value |
| Series | 800F |
| Cutout Diameter | 22mm |
| Push Button Colour | Blue |
| Push Button Actuation | Reset |
| Push Button Style | Round |
| IP Rating | IP65 |
