Allen-Bradley 800FP-F3PX10 22mm Momentary Push Button 800F PB
Allen-Bradley 800FP-F3PX10 22mm Momentary Push Button 800F PBDescriptionPushbutton AssembliesScrew terminals to contact blocks Fitted with metal self locking latchRed button fitted with extend capAllen Bradley Green Round Push Button, 10mA Maximum Current, SPNO Configuration - 800FP-F3PX10Use this push button from Rockwell Automation's Allen Bradley range to switch your equipment on...
Allen-Bradley 800FP-F3PX10 22mm Momentary Push Button 800F PB
Description
Pushbutton Assemblies
Screw terminals to contact blocks
Fitted with metal self locking latch
Red button fitted with extend cap
Fitted with metal self locking latch
Red button fitted with extend cap

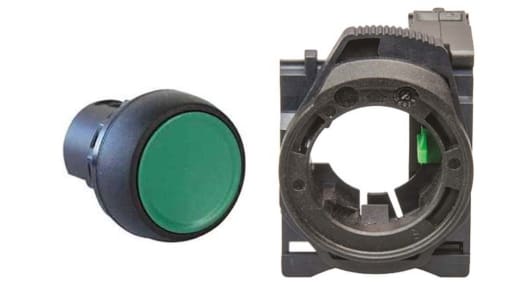

Allen Bradley Green Round Push Button, 10mA Maximum Current, SPNO Configuration - 800FP-F3PX10
Use this push button from Rockwell Automation's Allen Bradley range to switch your equipment on and off. A single-pole normally open (SPNO) contact configuration means that it controls one circuit and allows current to flow only when the button is pressed. Its green colour makes it easy to identify as an activation switch. It comes supplied with a self-locking latch, so it's easy to install on a panel – all you need is a standard screwdriver. Versatile units like this can be used anywhere from warehouses to workshops.
• Screw termination method is simple, so you save time and effort
• Wide operating temperature range of -25°C to +70°C for use in challenging conditions
• Maximum current rating of 10mA for energy efficiency and minimal heat dissipation
• IP69K (ingress protection) rating indicates resistance to dust and high-pressure water jets at high temperatures
• Wide operating temperature range of -25°C to +70°C for use in challenging conditions
• Maximum current rating of 10mA for energy efficiency and minimal heat dissipation
• IP69K (ingress protection) rating indicates resistance to dust and high-pressure water jets at high temperatures
Standards and Certifications
• CE (Conformitè Europëenne)
• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Association)
• CCC (Chinese Standards)
• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Association)
• CCC (Chinese Standards)
Is this push button compatible with a light block?
No, this push button is a non-illuminated type and can't be integrated with a light block.
800F Series Pushbuttons & Indicators
The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.
The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:
The 800F range covers the following products:
• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
Specifications
| Attribute | Value |
| Push Button Colour | Green |
| Push Button Diameter | 22.5mm |
| Mounting Type | Panel Mount |
| Push Button Material | Plastic |
| Illuminated | No |
| Contact Configuration | SPNO |
| Push Button Style | Round |
| Panel Cut Out Diameter | 22mm |
| Series | 800F |
| IP Rating | IP66, IP69K |
| Minimum Operating Temperature | -25°C |
| Terminal Type | Screw |
| Manufacturer Part No. | 800FP-F3PX10 |
| Maximum Operating Temperature | +70°C |
