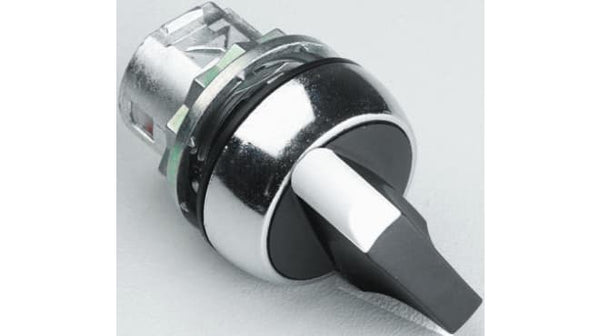

Allen-Bradley 800FM-SL32 22mm Selector Switch 800F PB

  • DescriptionSelector SwitchesIntegral position indicator90 degree knob offset option for use in vertical mount enclosures60 degree switching angleErgonomic thumb gripNon illuminated, black with white insert operatorSelect required contact configuration separately800F Series Pushbuttons & IndicatorsThe 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet...



    Add to quote

    Description

    Selector Switches


    Integral position indicator
    90 degree knob offset option for use in vertical mount enclosures
    60 degree switching angle
    Ergonomic thumb grip
    Non illuminated, black with white insert operator
    Select required contact configuration separately


    800F Series Pushbuttons & Indicators


    The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.


    The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
    The 800F range covers the following products:


    • Illuminated/non-illuminated push-buttons and mushroom operators
    • Pilot lights LED operated
    • Selector, toggle, multi-function and key selector switches (2 and 3 positions)
    • Custom laser engraving for pushbutton caps and diffusers
    • Single turn potentiometer assembly
    • Emergency stop push-buttons including the unique self-monitoring contact block
    • Low front of panel profile
    • Selection of silicone boots are available
    • Plastic enclosures
    • Metal operators offer ruggedness and durability

    Specifications

    Attribute Value
    Actuator Colour Black
    Illuminated No
    Number of Positions 3
    Cutout Diameter 22mm
    Actuator Type Standard Handle
    Switch Actuation Left Spring Return Right Latching
    Series 800F
    IP Rating IP66
    Angle of Throw 45°
