Allen-Bradley 800F-X01S 22mm Contact Block 800F PB
Allen-Bradley 800F-X01S 22mm Contact Block 800F PBDescriptionContact BlocksScrew terminationsDurable hook & snap interface to latchColour-coded plungers for easy circuit identificationBifurcation for superior contact wiping and optimal switching reliabilityLatch and contact block combinations available.Base mounted versions for use with enclosures.CE Marked in compliance to relevant European DirectiveNoteIn the price table 'SM...
Allen-Bradley 800F-X01S 22mm Contact Block 800F PB
Description
Contact Blocks
Screw terminations
Durable hook & snap interface to latch
Colour-coded plungers for easy circuit identification
Bifurcation for superior contact wiping and optimal switching reliability
Latch and contact block combinations available.
Base mounted versions for use with enclosures.
Durable hook & snap interface to latch
Colour-coded plungers for easy circuit identification
Bifurcation for superior contact wiping and optimal switching reliability
Latch and contact block combinations available.
Base mounted versions for use with enclosures.
CE Marked in compliance to relevant European Directive
Note
In the price table 'SM N/O' in the 'Contact Configuration' column denotes 'self monitoring normally open'. 'NCEB' denotes 'normally closed early break'.

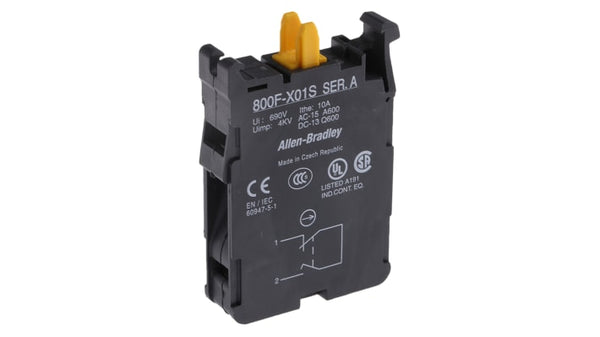

Image shows item with fitting latch attached, this is not supplied with item see stock nos. and
Image shows item with fitting latch attached, this is not supplied with item see stock nos. and
Allen Bradley Contact Block, 690V, NC - 800F-X01S
Alert personnel to hazards with this contact block from Rockwell Automation's Allen Bradley range. Its strong, solid-model design gives a long service life and it has had a finite element analysis (FEA) to make sure it stays durable in harsh conditions. The component offers optimal reliability when switching due to its twin-cell structure. It adheres to industry-standard 22mm hole fixings, so it's simple to install in your panel. As this contact block is compatible with the Allen Bradley latch for the 800F series (511-8291), it's easy to put together a complete setup.
Features & Benefits
• IP66 (ingress protection) rating indicates it's dust-tight and protected against powerful jets of water
• Voltage rating of 690V makes it suitable for harsh industrial environments such as the oil industry – both offshore and refineries
• Screw terminals for easy installation
• Colour-coded plungers make it simple to identify various circuits
• Voltage rating of 690V makes it suitable for harsh industrial environments such as the oil industry – both offshore and refineries
• Screw terminals for easy installation
• Colour-coded plungers make it simple to identify various circuits
Standards and Certifications
• UL (Underwriters' Laboratories)
• CE (Conformitè Europëenne)
• CSA (Compliance, Safety, Accountability) standards
• CCC (Chinese standard) compliant
• CE (Conformitè Europëenne)
• CSA (Compliance, Safety, Accountability) standards
• CCC (Chinese standard) compliant
What does NC (normally closed) mean?
NC indicates this contact block has one pair of normally closed contacts. This means the switch remains in a closed position until an action is completed or a certain condition is satisfied.
800F Series Pushbuttons & Indicators
The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.
The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:
The 800F range covers the following products:
• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
Specifications
| Attribute | Value |
| Block Type | Contact Block |
| Contact Configuration | 1NC |
| Series | 800F |
| Voltage Rating | 690V |
| Terminal Type | Screw |
| Body/Fixing Collar Included | No |
