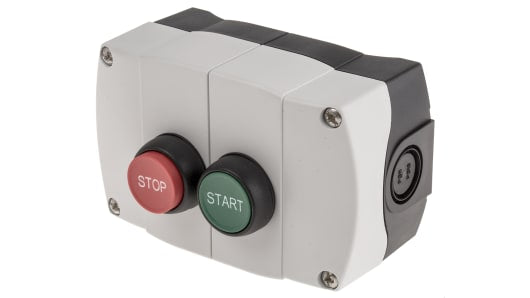

Allen-Bradley 800F-2PP1 22mm Enclosure 800F PB
Allen-Bradley 800F-2PP1 22mm Enclosure 800F PBDescriptionPushbutton/Selector Switch StationsSingle button and selector switch stations are fitted with 1 N/O contactStop-start station is fitted with 1 N/C and 1 N/O contactCE marked in compliance to relevant European Directive800F Series Pushbuttons & IndicatorsThe 800-F family of push-buttons, indicators, and accessories by Allen Bradley...
Allen-Bradley 800F-2PP1 22mm Enclosure 800F PB
Description
Pushbutton/Selector Switch Stations
Single button and selector switch stations are fitted with 1 N/O contact
Stop-start station is fitted with 1 N/C and 1 N/O contact
Stop-start station is fitted with 1 N/C and 1 N/O contact
CE marked in compliance to relevant European Directive
800F Series Pushbuttons & Indicators
The 800-F family of push-buttons, indicators, and accessories by Allen Bradley is expertly designed and manufactured to meet demanding performance specifications and reduce downtime by quickly and easily alerting personnel of hazards. Each component offers optimal durability and efficacy due to state-of-the-art solid modelling techniques and finite element analysis.
The Operators save you time and money as they can be quickly and easily installed. The 800-F range provides benefits such as: IP66 protection, CE/UL/CSA standards and CCC (Chinese standard) compliant, corrosion-resistant anodized plating finish, up to six circuits per operator, and single person panel installation. This family also adheres to industry standard 22mm hole fixing requirements.
The 800F range covers the following products:
The 800F range covers the following products:
• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
Specifications
| Attribute | Value |
| Push Button Colour | Green, Red |
| Enclosure Colour | Grey |
| Contact Configuration | 1NC/1NO |
| Enclosure Material | Plastic |
| IP Rating | IP66 |
| Cutout Diameter | 22mm |
| Push Button Actuation | Start-Stop |
| Length | 124mm |
| Width | 79mm |
| Depth | 58mm |
| Maximum Current | 10A |
| Maximum AC Voltage | 600V |
| Maximum DC Voltage | 13V |
