Description

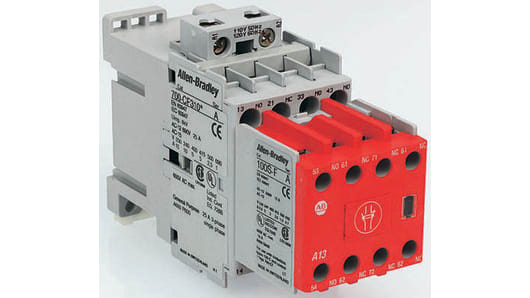

Allen Bradley 700S-CF 8 Pole Safety Control Relay - 5NO/3NC
For a safer and more efficient control circuit, the 700S-CF Safety Control Relay by Allen Bradley is the perfect solution.
The 700S-CF contactors have mechanically linked, positively guided contacts, which are necessary for modern feedback circuits in safety applications. This feature ensures detection of a welded contact condition. The positively guided NC auxiliary contacts do not change their state if NO contact welds. These reliable contactors have a red protective covering to ensure easy identification and defend against tampering and manual operation. The cover also displays the IEC 60947-5-1 mechanically-linked symbol. The Bulletin 700S-CF series is expertly designed with these special features to provide reliable, safe switching.
Features and Benefits:
• Mechanically linked/positively guided contacts as per IEC 60947-5-1
• Front mounted aux contact block which is permanently fixed
• SUVA Third-Party certification
• Mechanically linked contact symbol on front face
• Anti-tamper protective cover prevents manual operation, however the window allows visible ON/OFF status
• Highly visible red cover for easy identification of the safety unit
• Redundant contactors to isolate motor (hazardous motion)
• AC and DC operating coils
• Front mounted aux contact block which is permanently fixed
• SUVA Third-Party certification
• Mechanically linked contact symbol on front face
• Anti-tamper protective cover prevents manual operation, however the window allows visible ON/OFF status
• Highly visible red cover for easy identification of the safety unit
• Redundant contactors to isolate motor (hazardous motion)
• AC and DC operating coils
Note: DC versions incorporate a diode protection circuit
Certifications:
CE certified
CSA certified
UL listed
SUVA certified
VDE0660
IEC 60947-5-1
EN50011
EN50005
EN50022
CSA certified
UL listed
SUVA certified
VDE0660
IEC 60947-5-1
EN50011
EN50005
EN50022
Safety Contactor
Specifications
| Attribute | Value |
| Coil Voltage | 230 V ac |
| Number of Poles | 8 |
| Contact Current Rating | 25 A |
| Normal State Configuration | 5NO + 3NC |
| Contact Voltage Rating | 690 V ac |
| Series | 700S-CF |
| Number Of Auxiliary Contacts | 4 |
| Function | Safety |
| Auxiliary Contact Configuration | 2NO + 2NC |
| Terminal Type | Wire |
| Width | 45mm |
| Depth | 81mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +60°C |
| Length | 119.5mm |
| Pole and Throw Configuration | 4P |
