Allen Bradley Contactor Relay - 4NO, 20 A Contact Rating, 230 Vac, 700 Series
Allen Bradley Contactor Relay - 4NO, 20 A Contact Rating, 230 Vac, 700 SeriesAllen Bradley Contactor Relay - 4NO, 20 A Contact Rating, 230 Vac, 700 SeriesPowerpro company Limited is the distributor, supplier and service provider of ( Test Equipment Product Sales, Test Equipment Calibration, Test Equipment Rentals and Product...
Allen Bradley Contactor Relay - 4NO, 20 A Contact Rating, 230 Vac, 700 Series
Allen Bradley Contactor Relay - 4NO, 20 A Contact Rating, 230 Vac, 700 Series
Powerpro company Limited is the distributor, supplier and service provider of ( Test Equipment Product Sales, Test Equipment Calibration, Test Equipment Rentals and Product Training) in Nigeria.
Description
Allen Bradley AC Control Relays 700-C Series
Ensure maximum protection for your motor control application with the 700C series of IEC Control Relays by Allen Bradley.
These devices are ideally suited for demanding industrial applications due to provided features such as timing options, extended contact life, and mechanically linked contacts. They use the same accessories as the 100-C contactors, enabling you to easily customise your motor control application. They also offer simple installation via DIN rail or surface mounting. The IEC design ensures that these control relays meet high international standards for quality and safety, and they also have IP2X finger protection.
Contact Rating: 25A (AC1)
Max. Rated Voltage: 690V
Dimensions: H 80.5mm, W 45mm, D 81mm
Max. Rated Voltage: 690V
Dimensions: H 80.5mm, W 45mm, D 81mm
Features and Benefits:
• IEC industrial relays
• High contact reliability
• 4-…10 Poles
• Switch up to 690V AC and DC
• Mechanically linked contact performance per IEC 60947-5-1
• Electronic and Pneumatic Timing Modules
• Environmentally friendly materials
• Space-saving coil modules
• Gold plated, bifurcated version for low level switching applications
• High contact reliability
• 4-…10 Poles
• Switch up to 690V AC and DC
• Mechanically linked contact performance per IEC 60947-5-1
• Electronic and Pneumatic Timing Modules
• Environmentally friendly materials
• Space-saving coil modules
• Gold plated, bifurcated version for low level switching applications
Certifications:
CCC Certified
CE Marked
cULus Listed — File No. E14840; Guide Nos. NKCR/NKCR7
CE Marked
cULus Listed — File No. E14840; Guide Nos. NKCR/NKCR7
Standards:
CSA C22.2 No. 14
EN/IEC 60947-1, -5-1
Meets the material restrictions for European Directive 2002/95/EC - EU-RoHS
UL 508
EN/IEC 60947-1, -5-1
Meets the material restrictions for European Directive 2002/95/EC - EU-RoHS
UL 508

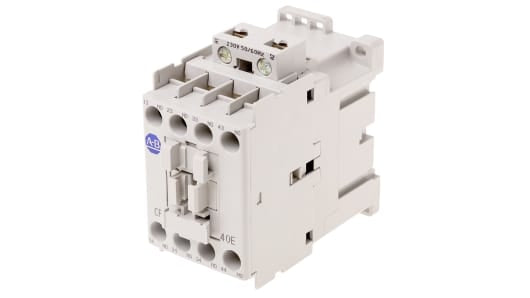

700-CF400KF IEC Control Relay
The 700-CF400KF unit by Allen Bradley is a control relay which has 4NO contact configuration. It has screw type terminals and a control voltage of 230V 50/60Hz.
Relay coil voltage: 4-Pole AC Coil Voltage
Allen Bradley industrial components, from Rockwell Automation, are designed, tested and manufactured to meet high global standards for quality, reliability and safety. Their innovative devices ensure that you can find the ideal solution for your specific application at a reasonable price. They also offer a high-level of support to keep your processes running efficiently.
What is an overload relay?
Overload relays are devices which protect motors from overheating due to excess current, which can cause damage to the motor. A motor starter is usually comprised of an overload relay with a contactor, which monitors the current flow in the circuit. If this rises the overload relay will trip to protect the motor by removing power. Overload relays can be reset manually or sometimes will reset automatically after a period of time. Overload relays are useful for keeping motors running efficiently and safely while protecting their lifespan.
Specifications
| Attribute | Value |
| Contact Current Rating | 20 A |
| Control Voltage | 230 Vac |
| Range | 700 Series |
| Series | 700C |
| Mounting Style | DIN Rail Mount, Panel Mount |
| Normal State Configuration | 4NO |
| Terminal Type | Screw |
| Width | 45mm |
| Depth | 80.5mm |
| Length | 81mm |
| Coil Voltage | 230 V ac |
| Contact Voltage Rating | 400 V ac |
