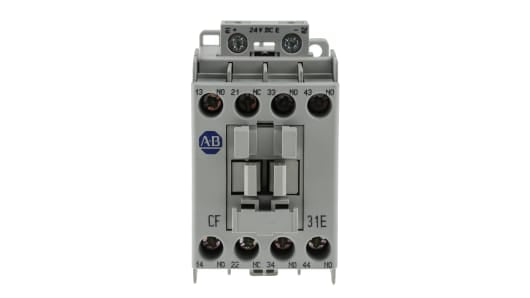

Allen Bradley 700 Series 700C Contactor, 24 V dc Coil, 4 Pole, 25 A, 3NO + 1NC
Description
Allen Bradley 700-CF IEC Coil Operating Voltage Control Relay, 24 V dc
Ensure improved safety, efficiency, and reliability for your circuit with the Bulletin 700-CF IEC Control Relays by Allen Bradley. These control relays offer features required for demanding industrial safety system applications such as mechanically linked contacts, timing options, and long contact life in an IEC design.
These units have a contact rating of 25 A (AC1) and a maximum rated voltage of 690V. Dimensions are: H 80.5mm, W 45mm, D 81mm. They have high contact reliability and incorporate environmentally friendly materials. They can be DIN rail or surface mounted. They can also use the same accessories as the Bulletin 100-C series.
Features and Benefits:
• Ideally suited for demanding heavy-duty industrial applications
• Mechanically linked contact performance per IEC 60947-5-1
• Gold plated, bifurcated version for low level switching applications
• 4 to 10 poles
• High contact reliability
• Electronic and pneumatic timing modules
• Environmentally friendly materials
• Space saving coil modules
• Mechanically linked contact performance per IEC 60947-5-1
• Gold plated, bifurcated version for low level switching applications
• 4 to 10 poles
• High contact reliability
• Electronic and pneumatic timing modules
• Environmentally friendly materials
• Space saving coil modules
Certifications:
CE, cULus, CCC
Specifications
| Attribute | Value |
| Coil Voltage | 24 V dc |
| Number of Poles | 4 |
| Contact Current Rating | 25 A |
| Normal State Configuration | 3NO + 1NC |
| Contact Voltage Rating | 690 V ac |
| Range | 700 Series |
| Series | 700C |
| Width | 45mm |
| Depth | 112.5mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +60°C |
| Length | 81mm |
| Mounting Style | DIN Rail Mount |
