Allen Bradley Diffuse Photoelectric Sensor, Block Sensor, 200 ? 8000 mm Detection Range IO-LINK
Description
45LMS Laser Measurement Sensors
Allen Bradley 45LMS laser measurement sensors offer an excellent mid to long range measurement solution. Available in three ranges, these sensors use the Time of Flight (ToF) principle and has a relatively small beam spot, even from a distance of 50 m. IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device-specific parameters
Features and Benefits
IO-Link communication
Includes diffuse range: 8 m (Class 1 laser); 15 m (Class 2 laser)
One discrete output (1 x NPN/PNP) and one analogue output (1 x 4...20 mA)
Accurate to ± 24 mm (±0.98 in.)
Provides fast response time of 10 ms

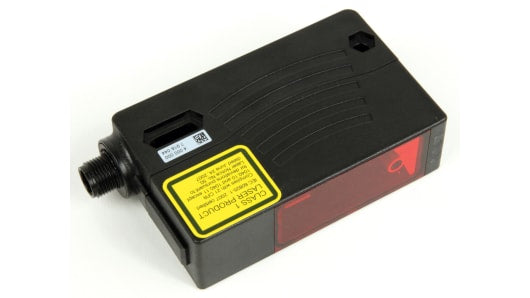

Allen Bradley Diffuse Photoelectric Sensor Block, IO-Link, 200mm to 8m Detection Range - 45LMS-D8LGC1-D4
For accurate object and position detection in industrial operations, choose this photoelectric sensor from Rockwell Automation's Allen Bradley range. It works by sending out a beam of light that's blocked and reflected by a workpiece. The return signal is measured and sent to the equipment's actuators so it can react appropriately. The unit's ABS (acrylonitrile butadiene styrene) housing provides impact resistance and mechanical strength, so you can use it in harsh conditions. It's also energy-efficient, consuming just 70mA of electrical current. You'll find it commonly used with packaging machinery.
• Laser optical technology for a light beam that's easy to see, making alignment easier
• Wide detection range from 8mm to 200mm for versatility
• IO-Link technology enables self-diagnostics that make troubleshooting easier
• Wide operating temperature range of -30°C to +50°C for use in demanding conditions
• Wide detection range from 8mm to 200mm for versatility
• IO-Link technology enables self-diagnostics that make troubleshooting easier
• Wide operating temperature range of -30°C to +50°C for use in demanding conditions
Standards and Certifications
• CE (Conformitè Europëenne)
• CSA (Canadian Standards Association)
• UL (Underwriters' Laboratory)
• CSA (Canadian Standards Association)
• UL (Underwriters' Laboratory)
How do I mount this sensor?
Mounting this connector is simple. It has a threaded end to screw onto its connector. It's important to mount it so its target is in its sensing range and also to teach it the appropriate set points.
Specifications
| Attribute | Value |
| Sensor Style | Block |
| Detection Type | Diffuse |
| Detection Range | 200 ? 8000 mm |
| Output Type | NPN/PNP |
| Electrical Connection | M12 4 Pin Connector |
| Communication Protocol | IO-LINK |
| Maximum DC Voltage | 30V |
| Terminal Type | 4 Pin Micro Quick Disconnect |
| Light Source | LED |
| IP Rating | IP65 |
| Maximum Current | 70 mA |
| Response Time | 10 ms |
| Interface | IO-Link |
| Housing Material | ABS |
| Series | 45LMS |
| Minimum Operating Temperature | -20°C |
| Mounting Type | Threaded |
| Maximum Operating Temperature | +60°C |
| Standards Met | CE, cULus, IEC 60068-2-27, IEC 60068-2-6, UL |
