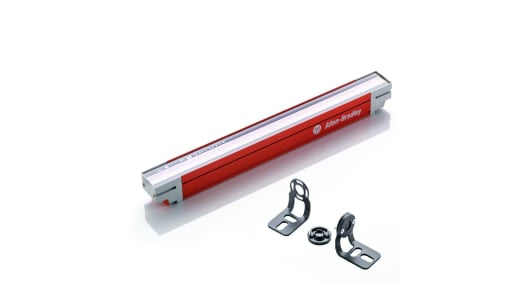

Allen-Bradley 450L-E4FL1650YD GuardShield LineE 1650- 14mm Transceiver
DescriptionOur Bulletin 450L GuardShield™ POC safety light curtains are unlike traditional safety light curtains, which are based on separate transmitter and receiver units. Patented technology allows each transceiver to be used as a transmitter or receiver via an innovative plug-in module. The 450L-B is the basic model with on/off functionality....
Description
Our Bulletin 450L GuardShield™ POC safety light curtains are unlike traditional safety light curtains, which are based on separate transmitter and receiver units. Patented technology allows each transceiver to be used as a transmitter or receiver via an innovative plug-in module. The 450L-B is the basic model with on/off functionality. The advanced 450L-E model features integrated laser alignment, cascading, blanking, and integrated muting.
Includes patented technology that allows each transceiver to be used either as a transmitter or receiver via an innovative plug-in module
Features an active protective field that senses over the entire length of a transceiver
Offers a wide range of protection heights 150…1950 mm (5.9…76.7 in.) in increments of 150 mm (0.5 ft)
Features a compact housing design 30 x 30 mm (1.18 x 1.18 in.)
Provides easy configuration of the start mode, external device monitoring (EDM), and scanning range by DIP switches on the plug-in modules
Features an active protective field that senses over the entire length of a transceiver
Offers a wide range of protection heights 150…1950 mm (5.9…76.7 in.) in increments of 150 mm (0.5 ft)
Features a compact housing design 30 x 30 mm (1.18 x 1.18 in.)
Provides easy configuration of the start mode, external device monitoring (EDM), and scanning range by DIP switches on the plug-in modules
Specifications
| Attribute | Value |
| Range | GuardShield |
| Series | 450L-E |
| Beam Resolution | 14mm |
| Component Type | Transceiver |
| SIL IEC 61508 | SIL 3 |
| PL EN ISO 13849-1 | e |
| Protective Height | 1650mm |
| Minimum Scanning Distance | 0.5m |
| Maximum Scanning Distance | 9m |
| Maximum Response Time | 20 ms |
| Length | 30mm |
| Supply Voltage | 24 V dc |
| Dimensions | 30 x 30 mm |
| Application | Electronic Fences, Forming Operations, Presses, Robot Cells, Workstations |
| Terminal Type | M12 Connector |
| Width | 30mm |
| Features | Muting, Blanking, Start Mode, External Device Monitoring (EDM) |
