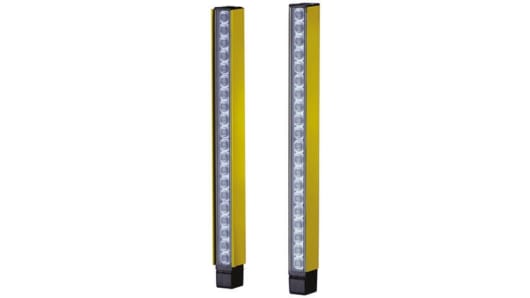

Allen-Bradley 445L-P4E0300FP GuardShield Micro400 Pair 30-0300mm
DescriptionGuardShield Safe 4, 445L SeriesEconomical, Type 4 safety light curtain designed for small assembly machines in ambient operating environments, or where mounting space is limited. Connection to an MSR42 controller (stock number 703-4987), improves flexibility for applications requiring two or three light curtains or other safety devices such as safety...
Description
GuardShield Safe 4, 445L Series
3 box system with dedicated safety controller
Slim profile housing (15 mm x 20 mm)
DIN controller is also multi function safety module
Configuration of controller functionality through wiring or software
Type 4, SIL 3
Note
Specifications
Attribute | Value |
Range | GuardShield |
Series | micro 400 |
Beam Resolution | 30mm |
Component Type | Receiver, Sender |
Safety Type | 4 |
SIL IEC 61508 | 3 |
PL EN ISO 13849-1 | e |
Number of Beams | 12 |
Protective Height | 300mm |
Minimum Scanning Distance | 0m |
Maximum Scanning Distance | 5m |
Maximum Response Time | 23 ms |
Height | 301mm |
Supply Voltage | 24 V dc |
Length | 19.8mm |
Terminal Type | 8-Pin M12 Connector |
Dimensions | 15.5 x 19.8 x 301 mm |
Application | Hand |
Features | EDM, Fixed Blanking, Floating Blanking, Muting, Start/Restart Interlock |
Width | 15.5mm |
