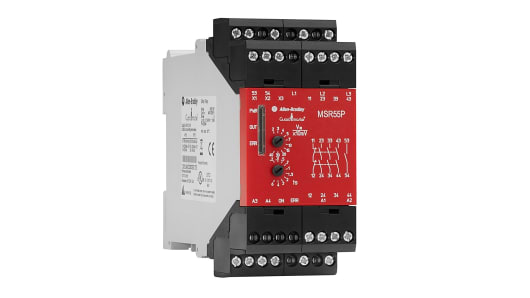

Allen-Bradley 440R-S35011 MSR55P 24V DC 20mV to 400mV
DescriptionThe Allen Bradley guard master MSR55P back EMF modules are suitable to monitor the standstill of all electric motors that generate a remanence voltage while coasting to stop.Power supply - 24V DC,20 mV to 400 mVInputs - 2 redundant measuring channelsRemovable screw type and spring clampManual / automatic reset for...
Description
The Allen Bradley guard master MSR55P back EMF modules are suitable to monitor the standstill of all electric motors that generate a remanence voltage while coasting to stop.
Power supply - 24V DC,20 mV to 400 mV
Inputs - 2 redundant measuring channels
Removable screw type and spring clamp
Manual / automatic reset for external faults
Housing width is 45 mm
Inputs - 2 redundant measuring channels
Removable screw type and spring clamp
Manual / automatic reset for external faults
Housing width is 45 mm
Specifications
| Attribute | Value |
| Supply Voltage | 24V |
| Number of Channels | 2 |
| Safety Contacts | 3 |
| Function | Safety Monitoring |
| Auxiliary Contacts | 1 |
| Reset Method | Manual |
| Range | Guardmaster |
