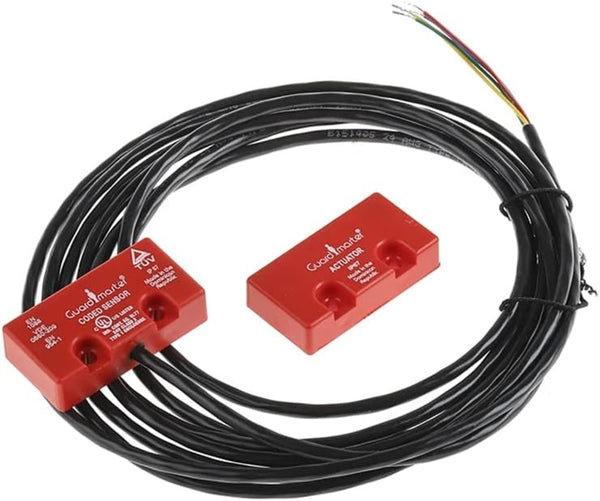

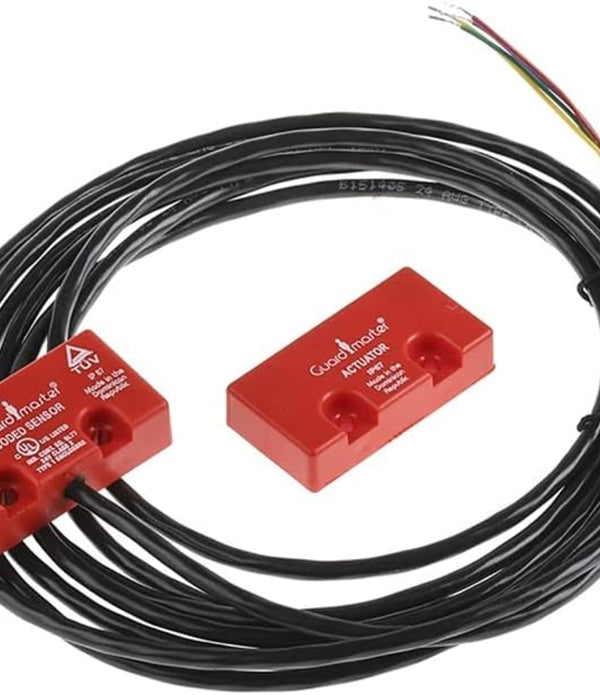

Allen-Bradley 440N-Z2NRS1A Guardmaster 440N Non Contact Switch
Allen-Bradley 440N-Z2NRS1A Guardmaster 440N Non Contact Switch Description Allen Bradley Guardmaster MC1 440N-Z2NRS1A Non-Contact Switch Upgrade the safety of your machine guard with the MC1 440N-Z2NRS1A Magnetic Non-Contact Safety Switch by Allen Bradley Guardmaster. This magnetically coded non-contact interlock switch combines several magnetically sensitive elements which must be activated in...
Allen-Bradley 440N-Z2NRS1A Guardmaster 440N Non Contact Switch
Description
Allen Bradley Guardmaster MC1 440N-Z2NRS1A Non-Contact Switch
Upgrade the safety of your machine guard with the MC1 440N-Z2NRS1A Magnetic Non-Contact Safety Switch by Allen Bradley Guardmaster. This magnetically coded non-contact interlock switch combines several magnetically sensitive elements which must be activated in a specific order to work correctly. The MC1 switch is designed to meet the risks of more complex safety guard monitoring applications. It will limit personnel access to hazardous areas where machinery is in motion by removing power to the motor when the barrier is opened.
This sensor is exceptionally versatile and simple to install due to its moulded-in brackets and small size. For high-risk applications a control unit is used with a single sensor to provide a high-integrity system. For other applications, multiple sensors (including mechanical switches) can be connected. It has high tolerance to door misalignment due to its wide sensing range, ensuring enhanced stability and security for your equipment. It has simplified set up and alignment to help decrease installation costs. This device also has a rating of IP67 (NEMA 6P), making it perfectly suited to wet environments where machines are regularly washed down, and it is also dust-tight.
Allen Bradley Guardmaster aim to maximise protection, efficiency, and productivity in your workplace with their wide range of safety devices for machinery. With their high-quality products recognised for excellence and innovation across the globe, you can be sure to find a flexible and secure solution to meet your requirements.
Features and Benefits:
• It has a supply voltage rating of 24 V dc and comes with a 3m cable
• Reliable non-contact actuation allows the door to be opened without delay and reduces debris contamination risk
• Superior and efficient magnetic coded sensing and 2NC reeds output
• Large sensing field ensures high tolerance to misalignment
• Designed for use with specified controllers
• Operating temperature ranging between -10°C and 55°C
• Reliable non-contact actuation allows the door to be opened without delay and reduces debris contamination risk
• Superior and efficient magnetic coded sensing and 2NC reeds output
• Large sensing field ensures high tolerance to misalignment
• Designed for use with specified controllers
• Operating temperature ranging between -10°C and 55°C
Certifications:
IP67 rated
EN954-1
ISO13849-1,
IEC/EN60204-1
NFPA79
EN1088
ISO14119
IEC60947- 5-1
IEC/EN60947-5-3
ANSI B11.19
AS4024.1
CE certified
UL listed
TÜV certified
EN954-1
ISO13849-1,
IEC/EN60204-1
NFPA79
EN1088
ISO14119
IEC60947- 5-1
IEC/EN60947-5-3
ANSI B11.19
AS4024.1
CE certified
UL listed
TÜV certified
What are magnetically coded non-contact switches?
A magnetically coded non-contact switch is a device used for monitoring the position of machine safety barriers. They are typically used in industrial environments. It uses a magnetically-actuated reed contact and a specially-coded actuator. When the barrier is opened the contacts will either open or close due to the magnetic force interrupting the circuit. As there is no contact between the sensor and actuator they take less wear, are resistant to shocks and vibrations, and are highly tamper-proof, which gives them a long service life. They are often used for sliding, hinge, and removable gates.
Specifications
| Attribute | Value |
| Safety Contacts | 2NC |
| Housing Material | Plastic |
| Connection Type | 3m Cable |
| Actuator Type | Coded |
| Sensor Principle | Magnetic |
| Actuator Included | Yes |
| Switching Distance | 8 mm |
| Series | 440N |
| Range | MC1 |
| IP Rating | IP67 |
| Width | 25mm |
| Depth | 12mm |
| Length | 48mm |
| Safety Category | 4 |
