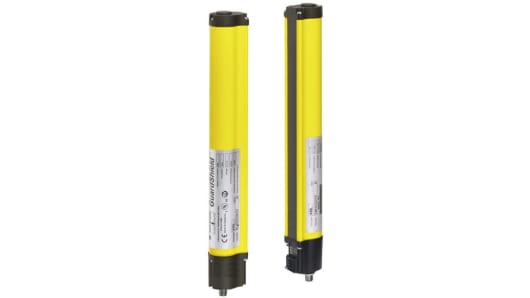

Allen-Bradley 440L-P4K0640YD Type4 0640-30mm GuardShield

SKU: 440L-P4K0640YD
Brand: rockwell automations

Availability: In Stock

Description440L, Type 4, Hand ProtectionDIP switch selectable modes of operation located beneath a security door in the end caps offer features that include:Fixed blanking (teachable)Floating blanking (one or two beam)Beam codingstart/restart interlockExternal device monitoring (EDM)Two safety solid state and one auxillary non-safety outputsEasy maintenance with the Quick Disconnect cables (4...

Description

440L, Type 4, Hand Protection

DIP switch selectable modes of operation located beneath a security door in the end caps offer features that include:
Fixed blanking (teachable)
Floating blanking (one or two beam)
Beam coding
start/restart interlock
External device monitoring (EDM)
Two safety solid state and one auxillary non-safety outputs
Easy maintenance with the Quick Disconnect cables (4 pin for the sender, 8 pin for the receiver)

Installation and operation of this safety device must be in strict accordance with accompanying operating instructions

Note

When ordering both a sender and receiver are included. In addition, a sender cable and a receiver cable will be required. For suitable safety relays, see the "Minotaur" range of products (e.g )

Standards

IEC/EN61496 parts 1 & 2, Type 4 ESPE and EN954-1 Cat 4

Approvals

UL; TUV

Light Curtain

Specifications

Attribute	Value
Range	GuardShield
Series	440 L
Beam Resolution	30mm
Component Type	Receiver, Sender
Safety Type	4
SIL IEC 61508	3
PL EN ISO 13849-1	e
Number of Beams	32
Protective Height	640mm
Minimum Scanning Distance	0.3m
Maximum Scanning Distance	16m
Maximum Response Time	20 ms
Supply Voltage	24 V dc
Length	52mm
Height	792mm
Application	Hand
Dimensions	42 x 52 x 792 mm
Terminal Type	4-Pin M12 Connector, 8-Pin M12 Connector
Features	Beam Coding, EDM, Fixed Blanking, Floating Blanking, Start/Restart Interlock
Width	42mm
