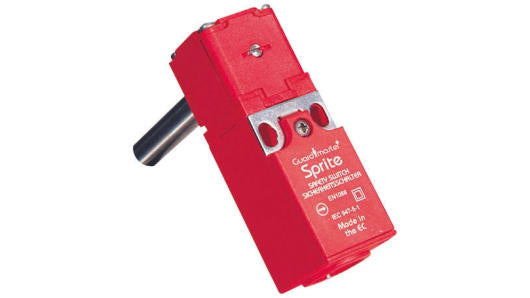

Allen-Bradley 440H-S34021 Guardmaster Sprite Hinge Switch

  • DescriptionSprite 3A miniature hinge operated safety interlock switch with 2 sets of contacts and a full IP67 ingress rating. Particularly useful for light duty hinged guard doors, covers or flaps. Cam may be adjusted in-situ to assist in accurate installation and minimise nuisance trippingMiniature case (75mm x 25mm)Rotateable head facilitates;...



    Add to quote

    Description

    Sprite 3


    A miniature hinge operated safety interlock switch with 2 sets of contacts and a full IP67 ingress rating. Particularly useful for light duty hinged guard doors, covers or flaps. Cam may be adjusted in-situ to assist in accurate installation and minimise nuisance tripping
    Miniature case (75mm x 25mm)
    Rotateable head facilitates; 4 possible shaft positions
    Adjustable operating speed
    Make-before-break contacts
    Forced guided contacts - complies with EN 1088, IEC 947-5-1

    Note

    These are not to be used for load bearing applications


    Hinge Switch

    Specifications

    Attribute Value
    Range Sprite
    Series 440H
    Lock Style Hinge
    Normal State Configuration NO/NC
    Shaft Length 80mm
