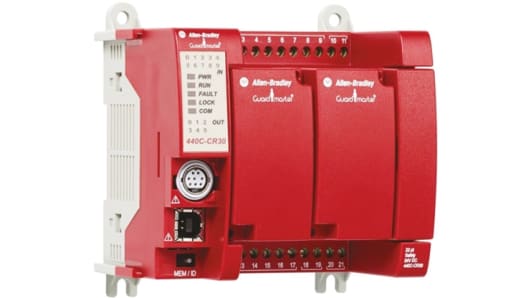

The Guardmaster 440C-CR30 is a flexible, cost effective and user friendly software configurable safety controller that is ideal for applications requiring 4 to 10 safety circuits and control of up to 5 zones. For simple and seamless programming of standard and safety logic in separate devices the 440C-CR30 can be configured through Connected Components Workbench™ software (the same programming environment used by the Micro800™ family of controllers), PanelView™ Component HMIs and PowerFlex drives. The graphical user interface and drag and drop capabilities of CCW help guide users through a simple process of selecting certified safety function blocks for the 440C-CR30. This enables users to create, control, and monitor a safety system in the same software environment as their standard control, resulting in increased productivity and reduced programming time.
Diagnostic data can be easily communicated to a Micro800, PanelView Component or CompactLogix™ thanks to an embedded Modbus interface. Users can monitor, troubleshoot, and modify their applications quickly and easily by leveraging the features of CCW and the embedded communication capabilities of the Guardmaster 440C-CR30. The 5 status and 16 user configurable LEDs on the faceplate provide local diagnostics to further aid in status reporting and troubleshooting.
With 22 on-board safety I/O points, including 6 configurable I/O, the Guardmaster 440C-CR30 safety controller is a flexible solution for applications requiring multiple safety zones. It can also be expanded with 2 standard Micro800 plug-in modules to support 16 additional standard I/O points, saving valuable safety I/O points for your safety system.

PLe, SIL3 per EN ISO 13849-1, IEC 62061
22 embedded Safety I/O
Embedded Modbus communicates with Allen-Bradley Connected Components for efficient monitoring and troubleshooting
2 plug-in ports supporting Micro800 (2080) plug-ins
Quick and easy configuration via Connected Components Workbench - a single software environment for standard and safety control
Predefined drag and drop safety function blocks simplify programming
Advanced diagnostics enable increased productivity and enhanced safety
Compact design optimizes panel space
Bidirectional RS232, 2400, 4800, 9600, 19200 baud

CE marked for all applicable directives, c-UL-us, TUV pending.

Create, control and monitor safety systems with this Allen Bradley Guardmaster safety controller from Rockwell Automation. The user-friendly configurable device can host from four to ten safety circuits in up to five areas, offering a flexible solution for applications with multiple safety zones. It comes with Connected Components Workbench (CCW) software with a predefined drag-and-drop user interface for quick and simple programming. The embedded Modbus interface makes sure that the unit's diagnostic data is easily communicated to the relevant software.

• 22 on-board safety I/O (input/output) points for use over a wide network
• 16 configurable LEDs (light-emitting diodes) on the faceplate provide local diagnostics to help with status reporting and to offer efficient troubleshooting
• Expandable with two standard Micro800 plug-in modules to support 16 additional standard I/O points

• UL (Underwriters' Laboratories)
• CE (Conformitè Europëenne)
• TUV (Technischer Überwachungsverein)

No, this safety controller has compact dimensions of 100 (L) x 90 (W) x 80mm (D) to ensure it slots neatly into your panel.
