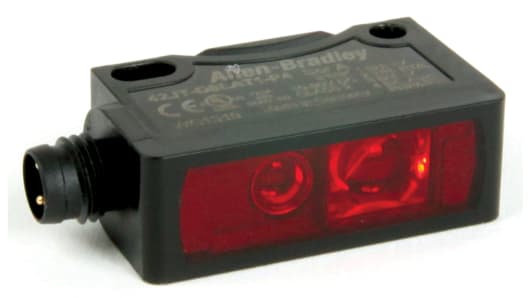

Allen Bradley Diffuse Photoelectric Sensor, Block Sensor, 3 ? 800 mm Detection Range IO-LINK
Allen Bradley Diffuse Photoelectric Sensor, Block Sensor, 3 ? 800 mm Detection Range IO-LINKDescriptionBulletin 42JT VisiSight Miniature Photoelectric SensorsAllen Bradley 42JT VisiSight photoelectric sensors offer a small rectangular package with visible light beam for ease of alignment and industry standard mounting hole spacing. Each model offers PNP or NPN and...
Allen Bradley Diffuse Photoelectric Sensor, Block Sensor, 3 ? 800 mm Detection Range IO-LINK
Description
Bulletin 42JT VisiSight Miniature Photoelectric Sensors
Allen Bradley 42JT VisiSight photoelectric sensors offer a small rectangular package with visible light beam for ease of alignment and industry standard mounting hole spacing. Each model offers PNP or NPN and light operate or dark operate outputs. IO-Link enabled sensors offer advanced features and diagnostics including Automatic Device Configuration, multiple profiles, trending, descriptive tags, and device-specific parameters
Features and Benefits
IO-Link communication
Class 1 ""Eye Safe"" red laser beam
Auto PNP/NPN output
Teach push button for sensitivity and LO/DO selection
IP69K and ECOLAB rated enclosure
Visible red LED light source for ease of alignment
Clear object detection
Colour and contrast detection
Mounting hole spacing of 25.4 mm
Allen Bradley Diffuse Photoelectric Sensor, 3 to 800mm Detection Range, IO-Link - 42JT-D2LAT1-P4
Use this diffuse photoelectric sensor from Rockwell Automation's Allen Bradley range to detect the presence and position of objects. It works by projecting a beam of light and measuring the reflection when the light hits a target item. It's a versatile option with a wide detection range of 3 to 800mm, which makes it suitable for both close-range and long-range detection. An integrated IO-Link communication system lets you connect it to a control system for seamless data transmission, enhancing productivity in your workplace.
• Tough ABS (acrylonitrile butadiene styrene) housing is resistant to impact and wear
• IP69K (ingress protection) rating means it's dustproof and protected against high-temperature, high-pressure water jets
• Wide operating temperature range of -20°C to +60°C for use in challenging environments
• Teach button to adjust sensitivity and output functions for enhanced versatility
• IP69K (ingress protection) rating means it's dustproof and protected against high-temperature, high-pressure water jets
• Wide operating temperature range of -20°C to +60°C for use in challenging environments
• Teach button to adjust sensitivity and output functions for enhanced versatility
Standards and Certifications
• CE (Conformitè Europëenne)
• cULus (Underwriters' Laboratories in the US and Canada)
• ECOLAB
• cULus (Underwriters' Laboratories in the US and Canada)
• ECOLAB
How quickly does this sensor detect objects?
This sensor has a fast response time of 500?s (microseconds), so you can rely on it for rapid object detection.
Specifications
| Attribute | Value |
| Sensor Style | Block |
| Detection Type | Diffuse |
| Detection Range | 3 ? 800 mm |
| Output Type | NPN/PNP |
| Electrical Connection | M8 4 Pin Connector |
| Maximum DC Voltage | 30V |
| Communication Protocol | IO-LINK |
| Terminal Type | 4 Pin Pico Quick Disconnect |
| Light Source | LED |
| IP Rating | IP67, IP69K |
| Maximum Current | 30 mA |
| Interface | IO-Link |
| Response Time | 500 ?s |
| Series | 42JT |
| Mounting Type | Flange Mount |
| Minimum Operating Temperature | -20°C |
| Housing Material | ABS |
| Maximum Operating Temperature | +60°C |
| Standards Met | CE, cULus, ECOLAB |
