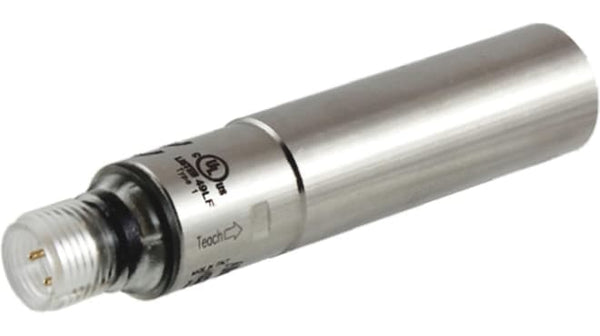

Allen Bradley Diffuse Photoelectric Sensor, Barrel Sensor, 100 mm Detection Range
Allen Bradley Diffuse Photoelectric Sensor, Barrel Sensor, 100 mm Detection RangeDescriptionPHOTOSWITCH® 42CS Stainless SteelHigh Pressure, High Temperature Washdown and Cleaning Chemicals Resistant ideal for the for the food and beverage industry.Innovative ferromagnetic teach for easy sensor programmingSmooth barrel design – free of threads and seams – minimizes the accumulation of...
Allen Bradley Diffuse Photoelectric Sensor, Barrel Sensor, 100 mm Detection Range
Description
PHOTOSWITCH® 42CS Stainless Steel
High Pressure, High Temperature Washdown and Cleaning Chemicals Resistant ideal for the for the food and beverage industry.
Innovative ferromagnetic teach for easy sensor programming
Smooth barrel design – free of threads and seams – minimizes the accumulation of undesired particles and allows for fast and thorough cleanup. Ideal for food and beverage industry
Extended temperature operating range
Robust 18 mm stainless steel 316L enclosure with laser etched markings
Two teach modes: standard and precision
Teach lockout feature prevents unauthorized users from changing the settings
Input to disable light source emitter
IP69K rated
Smooth barrel design – free of threads and seams – minimizes the accumulation of undesired particles and allows for fast and thorough cleanup. Ideal for food and beverage industry
Extended temperature operating range
Robust 18 mm stainless steel 316L enclosure with laser etched markings
Two teach modes: standard and precision
Teach lockout feature prevents unauthorized users from changing the settings
Input to disable light source emitter
IP69K rated
Specifications
| Attribute | Value |
| Sensor Style | Barrel |
| Detection Type | Diffuse |
| Detection Range | 100 mm |
| Output Type | PNP |
| Maximum DC Voltage | 30V |
| Light Source | LED |
| IP Rating | IP69K |
| Maximum Current | 100 mA |
| Response Time | 1.25 ms |
| Maximum Operating Temperature | +85°C |
| Housing Material | Stainless Steel |
| Minimum Operating Temperature | -25°C |
