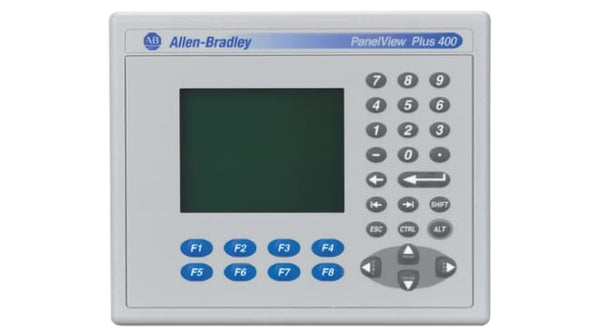

Allen Bradley 2711P Series Touch Screen HMI 3.5 in TFT LCD 320 x 240pixels

  • DescriptionPanelView Plus 400 - Terminal with KeypadThe PanelView Plus 400 Graphic Terminal has a 3.5 inch flat-panel color with 320 x 240 resolution.This terminal supports operator input via keypad (8 function keys).Modular design includes logic, display, and communication modulesBase-configured terminal available with display and logic modulesOptimized for Logix control architectures...



    Add to quote

    Description

    PanelView Plus 400 - Terminal with Keypad


    The PanelView Plus 400 Graphic Terminal has a 3.5 inch flat-panel color with 320 x 240 resolution.
    This terminal supports operator input via keypad (8 function keys).

    Modular design includes logic, display, and communication modules
    Base-configured terminal available with display and logic modules
    Optimized for Logix control architectures and supports PLC-based and SLC-based systems
    18-bit color graphics
    RS-232 and Ethernet networks available through built-in communication ports
    Network interface for optional communication module
    One USB port

    Specifications

    Attribute Value
    Manufacturer Series 2711P
    Display Type TFT LCD
    Display Size 3.5 in
    Display Resolution 320 x 240pixels
    Display Colour Colour
    Number of Ports 4
    Interface Ethernet
    Port Type Ethernet, RS232, USB
    Onboard Memory 256 MB
    Backlighting Yes
    Supply Voltage 85 ? 264 V ac
    IP Rating IP66
    Depth 90mm
    Dimensions 185 x 152 x 90 mm
    Length 185mm
    Width 152mm
    Minimum Operating Temperature 0°C
    Maximum Operating Temperature +55°C
    Kit Included Yes
