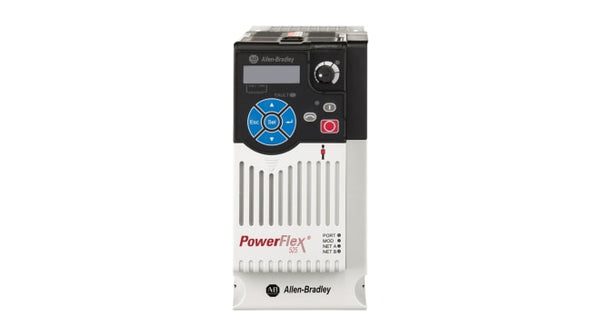

Allen Bradley PowerFlex 525 Inverter Drive, 1-Phase In, 500Hz Out, 2.2 kW, 230 V ac, 11 A

  • ₦0.00
  • DescriptionPowerFlex 525 - Single-phase Inverter DrivesPowerFlex® 525 AC Drives are cost-effective and ideal for networked machines and simple system integration. These inverters provide an innovative, modular design that supports fast and easy installation and configuration. In addition, they offer USB programming, application-specific configuration, and flexible mounting options.The inverter support a...



    Add to quote

    Description

    PowerFlex 525 - Single-phase Inverter Drives


    PowerFlex® 525 AC Drives are cost-effective and ideal for networked machines and simple system integration. These inverters provide an innovative, modular design that supports fast and easy installation and configuration. In addition, they offer USB programming, application-specific configuration, and flexible mounting options.
    The inverter support a wide range of motor control, offer a compact footprint, and operate at temperatures as high as 70°C.

    1-phase input with EMC filter
    Modular design for quick installation and configuration
    Embedded EtherNet/IP port allows easy configuration, control, and collection of drive data over the network
    Software and tools help simplify programming
    An integral human interface module (HIM) supports multiple languages and features descriptive
    QuickViewTM, AppViewTM and CustomViewTM for easy operation and parameterisation
    Economizer control mode and energy monitoring features can help reduce energy costs
    Closed loop feedback with an optional encoder card (stock no. )
    More I/Os than the PowerFlex 523 series.
    Drives operate in ambient temperatures from -20°C to 50°C. With current derating and a control module fan kit, up to 70°C
    A range of motor control options support a variety of applications
    A compact footprint provides flexible installation options and helps saves space inside of a panel

    Allen Bradley Inverter Drive, 2.2kW Power Rating, 11A Current Rating - PowerFlex 525 Series - 25B-A011N114


    Use this inverter drive from Rockwell Automation's Allen Bradley range to adjust the speed or output of your electrical current. It's placed between a power supply and a motor to regulate the current before it's used and ensure it's safe for the attached machinery. The drive converts alternating current (AC) into direct current (DC) to suit the needs of your specific application. Its 11A (amperes) current rating is designed to support mid-range circuits such as those found in conveyor systems and machine tools.

    Features & Benefits


    • Human interface system (HIM) has multi-lingual QuickView, AppView and CustomView add-ons for accessible operation
    • Mounts to a DIN rail to make a secure connection that's resistant to vibration
    • IP20 (ingress protection) rating means it's safe for operators to touch without risk of electric shocks

    Standards and Certifications


    • TUV (Technical Inspection Association)
    • CE (Conformitè Europëenne)
    • ATEX (Explosive Atmospheres)
    • UL (Underwriters' Laboratories)

    What's the operating temperature range of this inverter drive?


    This inverter drive has a wide operating temperature range between -40°C and +70°C for use in demanding industrial environments.

    Specifications

    Attribute Value
    Power Rating 2.2 kW
    Phase 1
    Supply Voltage 230 V ac
    Current Rating 11 A
    Output Frequency 500Hz
    For Use With Networked Machine
    Hazardous Area Certification ATEX
    Series PowerFlex 525
    IP Rating IP20, IP30
    Field Bus Communication Type DeviceNet
    Drive Type Vector Control
    STO Yes
    Control Panel Yes
    Mounting Type DIN Rail
    Filter Included Yes
    Standards Met ACS 156, ATEX, CE, CE Marine (RINA), C-Tick, cUL, GOST R, KCC, RoHS, Semi F47, TUV, UL
    Overall Depth 172mm
    Function Motor Control
    Overall Length 87mm
    Overall Width 180mm
    Interface Ethernet
    Special Features Enhance Safety, Excellent Reliability, Flexible Control
