Allen Bradley PowerFlex 40 Inverter Drive, 3-Phase In, 400Hz Out, 0.4 kW, 400 V ac, 1.4 A
Allen Bradley PowerFlex 40 Inverter Drive, 3-Phase In, 400Hz Out, 0.4 kW, 400 V ac, 1.4 ADescriptionAllen Bradley PowerFlex 40 Inverter DrivesThe PowerFlex 40 AC Drive by Allen Bradley is a highly versatile, cost-effective, compact motor control solution which provides greater ease-of-use. These inverter drives have sensorless vector control to...
Allen Bradley PowerFlex 40 Inverter Drive, 3-Phase In, 400Hz Out, 0.4 kW, 400 V ac, 1.4 A
Description

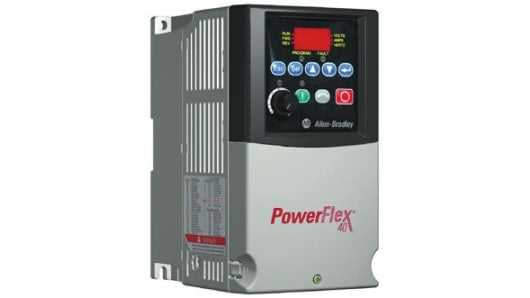

Allen Bradley PowerFlex 40 Inverter Drives
The PowerFlex 40 AC Drive by Allen Bradley is a highly versatile, cost-effective, compact motor control solution which provides greater ease-of-use. These inverter drives have sensorless vector control to meet low-speed torque demands. They can be installed and configured easily due to their simple programming and flexible enclosure options. These motor control devices are particularly ideal for OEMs, machine builders and end users.
The PowerFlex 40 AC drives are available in power ratings from 0.4 to 2.2kW (single phase) and 0.4 to 7.5kW (3 phase) in voltage classes of 230 and 400 volts. These adjustable frequency AC drives deliver high performance and are an economical and space-saving choice for efficient and reliable motor control.
Features and Benefits:
• Sensorless Vector Control
• Built-in RS-485 communication
• Drive overload protection, ramp regulation, and flying start
• Configuration and programming via integral LCD keypad, remote keypad, or software
• Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives
• Zero Stacking™ Drives for ambient temperatures up to 40 °C (104°F)
• Optional DeviceNet Communication Adapter
• Logic Timer and Counter functions
• Built-in RS-485 communication
• Drive overload protection, ramp regulation, and flying start
• Configuration and programming via integral LCD keypad, remote keypad, or software
• Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives
• Zero Stacking™ Drives for ambient temperatures up to 40 °C (104°F)
• Optional DeviceNet Communication Adapter
• Logic Timer and Counter functions
Applications:
Fans
Pumps
Conveyors
Material handling systems
Pumps
Conveyors
Material handling systems
Specifications
| Attribute | Value |
| Power Rating | 0.4 kW |
| Phase | 3 |
| Supply Voltage | 400 V ac |
| Current Rating | 1.4 A |
| Output Frequency | 400Hz |
| For Use With | AC Motors |
| Series | PowerFlex 40 |
| IP Rating | IP20 |
| Field Bus Communication Type | ModBus |
| STO | No |
| Control Panel | Yes |
| Overall Length | 180mm |
| Overall Depth | 136mm |
| Interface | Ethernet |
| Overall Width | 100mm |
