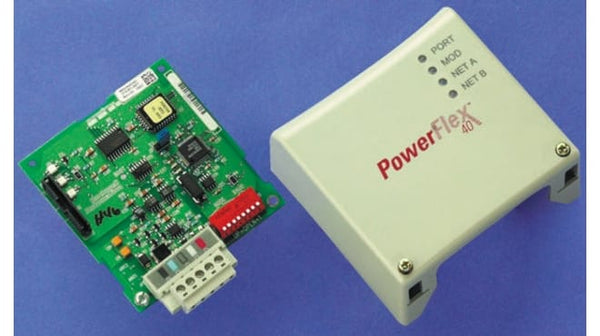

Allen Bradley Communication Module for use with PowerFlex 40, PowerFlex 400, PowerFlex 40P - 86mm Length
DescriptionCommunications Modules EtherNet - The 22-COMM-E EtherNet/IP adapter provides an internal EtherNet/IP connection for PowerFlex 40 drives. The adapter allows the drive to be controlled, configured, and data to be collected via an EtherNet/IP network. Web services are also provided and pages can be viewed with standard web browsers. The...
Description
Communications Modules
EtherNet - The 22-COMM-E EtherNet/IP adapter provides an internal EtherNet/IP connection for PowerFlex 40 drives. The adapter allows the drive to be controlled, configured, and data to be collected via an EtherNet/IP network. Web services are also provided and pages can be viewed with standard web browsers. The adapter also supports "Multi-Drive", a unique feature to Allen-Bradley. Multi-Drive allows up to five PowerFlex component class drives to connect to a single node on EtherNet/IP. Benefits include reduced hardware costs and a means to connect PowerFlex 4 drives to EtherNet/IP.
User configurable process display window
TCP/IP configuration (monitor only)
Email notification on fault, fault clear, and/or when the adapter takes its comm or idle fault actions
Monitoring device information, diagnostics and event queue
Direct launching of DriveExplorer or DriveExecutive on user's PC to connect on-line over EtherNet
TCP/IP configuration (monitor only)
Email notification on fault, fault clear, and/or when the adapter takes its comm or idle fault actions
Monitoring device information, diagnostics and event queue
Direct launching of DriveExplorer or DriveExecutive on user's PC to connect on-line over EtherNet
DeviceNet - The PowerFlex 40 (not the PowerFlex 4) can be integrated with Allen-Bradley PLC Architectures using this optional DeviceNet communications module.
Network - The PowerFlex 70 can be integrated with PLC Architectures using these communications modules which fit neatly inside the PowerFlex 70.
Note
A comms option cover is also needed for EtherNet & DeviceNet modules – choose the cover to match the PowerFlex 40 frame size (B or C).
Specifications
| Attribute | Value |
| Accessory Type | Communication Module |
| For Use With | PowerFlex 40, PowerFlex 400, PowerFlex 40P |
| Length | 86mm |
| Depth | 19mm |
| Dimensions | 86 x 78.5 x 19 mm |
