Allen Bradley, Micro870, PLC CPU - 14 Inputs, 10 Outputs, Relay, HMI Interface
Allen Bradley, Micro870, PLC CPU - 14 Inputs, 10 Outputs, Relay, HMI InterfaceDescriptionAllen Bradley Programmable Logic Controller CPU, 14 Inputs, 10 Outputs - Micro870 Series - 2080-LC70-24QWBUse this PLC (programmable logic controller) from Rockwell Automation's Allen Bradley range to give you more flexibility in your automated system. It has 128kB...
Allen Bradley, Micro870, PLC CPU - 14 Inputs, 10 Outputs, Relay, HMI Interface
Description

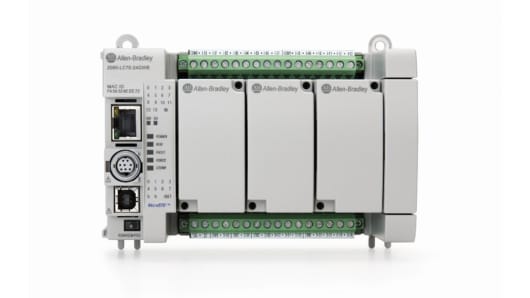

Allen Bradley Programmable Logic Controller CPU, 14 Inputs, 10 Outputs - Micro870 Series - 2080-LC70-24QWB
Use this PLC (programmable logic controller) from Rockwell Automation's Allen Bradley range to give you more flexibility in your automated system. It has 128kB of memory to efficiently execute complex programmes and user-designed functions according to the needs of your application. The device features relay output ports that work with both AC and DC voltages, making it suitable for many different control situations. It supports Ladder Diagram, Function Block and Structured Text programming languages, so you can see your application's processes displayed in your preferred format.
• Ethernet, Serial and USB connectivity for versatile use
• Removable terminal block design reduces wiring time for quick installation
• Operating temperature range between -20°C and +65°C for use in demanding conditions
• Removable terminal block design reduces wiring time for quick installation
• Operating temperature range between -20°C and +65°C for use in demanding conditions
Standards and Certifications
• UKCA (UK Conformity Assessed)
• CE (Conformitè Europëenne)
• UL (Underwriters' Laboratories)
• CE (Conformitè Europëenne)
• UL (Underwriters' Laboratories)
What are the differences between relay and solid-state output ports?
Meet operational needs by scaling machine with support for up to eight expansion I/O modules and 304 digital I/O points
Program devices and connect to HMI effortlessly through EtherNet/IP
Control drives and communicate to other controllers with ease using symbolic addressing with client messaging
Shorten machine development time with up to 280 KB memory size and support for up to 20,000 programming steps
Reduce wiring time with removable terminal blocks
Program devices and connect to HMI effortlessly through EtherNet/IP
Control drives and communicate to other controllers with ease using symbolic addressing with client messaging
Shorten machine development time with up to 280 KB memory size and support for up to 20,000 programming steps
Reduce wiring time with removable terminal blocks
Every PLC has either solid-state or relay output ports. Relay output ports, such as those on this controller, typically withstand higher currents than solid-state alternatives and can handle either AC or DC loads.
Specifications
| Attribute | Value |
| Manufacturer Series | Micro870 |
| Number of Inputs | 14 |
| Output Type | Relay |
| Voltage Category | 12 V, 24 V |
| Input Type | Voltage |
| Number of Outputs | 10 |
| Communication Port Type | ASCII, CIP, Modbus RTU Master/Slave, RS232/485 |
| Program Capacity | 128 kB |
| Programming Interface | HMI |
| Programming Language Used | Function Block, Ladder Diagram, Structured Text |
| Minimum Operating Temperature | -20°C |
| Number of Communication Ports | 3 |
| Width | 145mm |
| Length | 90mm |
| Depth | 80mm |
| Maximum Operating Temperature | +65°C |
| Dimensions | 90 x 145 x 80 mm |
