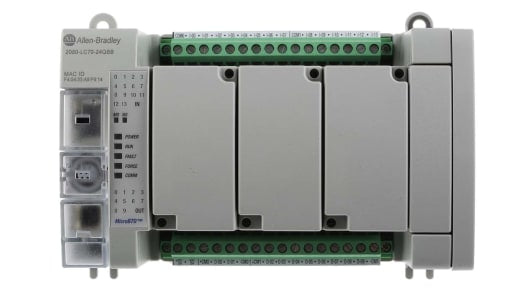

Allen Bradley, Micro870, PLC CPU - 14 Inputs, 10 Outputs, 24V Source, HMI Interface
Allen Bradley, Micro870, PLC CPU - 14 Inputs, 10 Outputs, 24V Source, HMI InterfaceDescriptionAllen Bradley Programmable Logic Controller CPU, 14 Inputs, 10 Outputs - Micro870 Series - 2080-LC70-24QBBIncrease the performance speeds of your automated system with this PLC (programmable logic controller) from Rockwell Automation's Allen Bradley range. It has 128kB...
Allen Bradley, Micro870, PLC CPU - 14 Inputs, 10 Outputs, 24V Source, HMI Interface
Description
Allen Bradley Programmable Logic Controller CPU, 14 Inputs, 10 Outputs - Micro870 Series - 2080-LC70-24QBB
Increase the performance speeds of your automated system with this PLC (programmable logic controller) from Rockwell Automation's Allen Bradley range. It has 128kB of memory, so it can support complex programmes and user-defined functions to efficiently meet the demands of your setup. Built-in Ethernet, Serial and USB connectivity means it's compatible with commonly used peripherals and network devices. Its 24V source solid-state output ports minimise the response times of connected machines.
• Supports Ladder Diagram, Structured Text and Function Block programming languages to display processes to suit your application
• Operating temperature range between -20°C and +65°C for use in demanding environments
• Removable terminal block design reduces wiring time for easy installation
• Operating temperature range between -20°C and +65°C for use in demanding environments
• Removable terminal block design reduces wiring time for easy installation
Standards and Certifications
• UKCA (UK Conformity Assessed)
• CE (Conformitè Europëenne)
• UL (Underwriters' Laboratories)
• CE (Conformitè Europëenne)
• UL (Underwriters' Laboratories)
What are solid-state output ports and how do they benefit my application?
Meet operational needs by scaling machine with support for up to eight expansion I/O modules and 304 digital I/O points
Program devices and connect to HMI effortlessly through EtherNet/IP
Control drives and communicate to other controllers with ease using symbolic addressing with client messaging
Shorten machine development time with up to 280 KB memory size and support for up to 20,000 programming steps
Reduce wiring time with removable terminal blocks
Program devices and connect to HMI effortlessly through EtherNet/IP
Control drives and communicate to other controllers with ease using symbolic addressing with client messaging
Shorten machine development time with up to 280 KB memory size and support for up to 20,000 programming steps
Reduce wiring time with removable terminal blocks
In a PLC, output ports operate physical devices in response to information arriving at the input modules. They come in solid-state and relay types. Solid-state output ports contain no moving parts, meaning their response times are quicker and they don't suffer any mechanical wear over time.
Specifications
| Attribute | Value |
| Manufacturer Series | Micro870 |
| Number of Inputs | 14 |
| Output Type | 24V Source |
| Voltage Category | 12 V, 24 V |
| Input Type | Voltage |
| Number of Outputs | 10 |
| Communication Port Type | ASCII, CIP, Modbus RTU Master/Slave, RS232/485 |
| Program Capacity | 128 kB |
| Programming Interface | HMI |
| Programming Language Used | Function Block, Ladder Diagram, Structured Text |
| Minimum Operating Temperature | -20°C |
| Dimensions | 90 x 145 x 80 mm |
| Length | 90mm |
| Number of Communication Ports | 3 |
| Maximum Operating Temperature | +65°C |
| Depth | 80mm |
| Width | 145mm |
