Allen Bradley, Micro850, PLC CPU - 28 Inputs, 20 Outputs, Relay, For Use With Micro800 Series, Ethernet, USB Networking
Allen Bradley, Micro850, PLC CPU - 28 Inputs, 20 Outputs, Relay, For Use With Micro800 Series, Ethernet, USB NetworkingDescriptionAllen Bradley PLC, 28 Inputs, 20 Outputs - Micro850 Series - 2080-LC50-48QWBLooking for a control and automation solution for your heavy-duty industrial equipment? Choose this programmable logic controller (PLC) from Rockwell Automation's...
Allen Bradley, Micro850, PLC CPU - 28 Inputs, 20 Outputs, Relay, For Use With Micro800 Series, Ethernet, USB Networking
Description

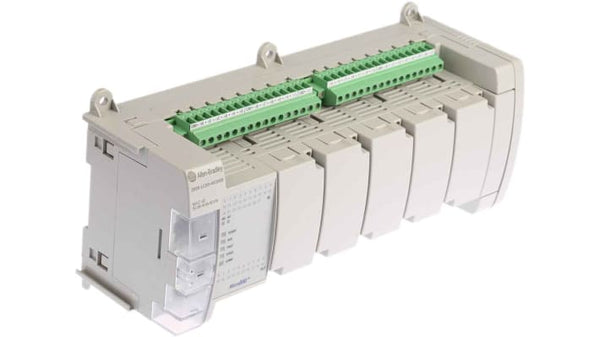

Allen Bradley PLC, 28 Inputs, 20 Outputs - Micro850 Series - 2080-LC50-48QWB
Looking for a control and automation solution for your heavy-duty industrial equipment? Choose this programmable logic controller (PLC) from Rockwell Automation's Allen Bradley range. It's designed for applications that need a lot of input/output functionalities. With 28 input and 20 output ports, there's ample allowance for control of various functions on your equipment. It also comes with expansion ports for extended functionality. With a weight of just 423g, this component is easy to handle and won't put a strain on your equipment. You'll find it commonly used in the robotics industry, as well as in process and packaging facilities.
Features and Benefits
• Compact dimensions of 90mm (length), 158mm (width) and 80mm (depth) for use in setups with limited space
• Wide operating temperature range of -20°C to +65°C for use in harsh environments
• DIN rail mounting for quick, simple and tool-free installation
• Wide operating temperature range of -20°C to +65°C for use in harsh environments
• DIN rail mounting for quick, simple and tool-free installation
Standards and Certifications
• UL (Underwriters' Laboratory)
• CE (Conformitè Europëenne)
• KC (Korean Registration of Broadcasting and Communications Equipment)
• CE (Conformitè Europëenne)
• KC (Korean Registration of Broadcasting and Communications Equipment)
What's the IP (ingress protection) rating of this PLC?
This PLC has an IP20 rating. This means it can withstand dust and objects that are larger than 12mm in size.
Specifications
| Attribute | Value |
| For Use With | Micro800 Series |
| Manufacturer Series | Micro850 |
| Number of Inputs | 28 |
| Output Type | Relay |
| Input Type | AC, DC |
| Voltage Category | 24 V dc |
| Interface | Ethernet |
| Number of Outputs | 20 |
| Network Type | Ethernet, USB |
| Communication Port Type | RS232, RS485, Serial |
| Mounting Type | DIN Rail |
| Dimensions | 238 x 90 x 80 mm |
| Depth | 80mm |
| Length | 238mm |
| Width | 90mm |
| Number of Communication Ports | 2 |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +65°C |
| Output Current | 8.8 mA |
