Allen-Bradley 194E-Y25-1756-6N 25 A 194E Load switch
Description

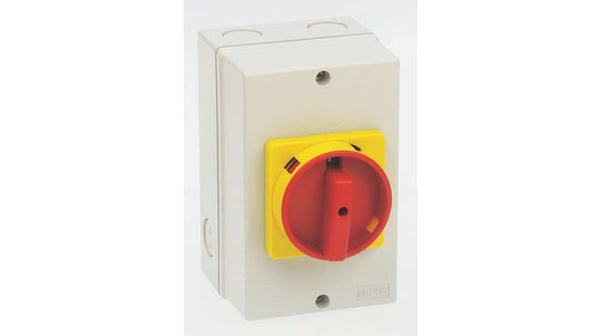

Allen Bradley Enclosed Switch Disconnectors
These disconnectors feature durable ABS thermoplastic enclosures. The cover is interlocked to prevent removal when live, reducing risk of electric shock. The handle can be padlocked in up to three positions in the OFF position for greater protection and security. They also have an earth connection in the base of the enclosure.
Standards: IEC 947, VDE 0660
Approvals: UL, CSA
Allen Bradley MCS Range
The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice. All switch materials can be recycled. Universal terminal screws are fitted for ’Pozidriv’ or flat blade screwdriver. The switching category is AC23A.
Specifications
| Attribute | Value |
| Number of Poles | 6P |
| Maximum Current | 25A |
| IP Rating | IP65 |
| Power Rating | 11kW |
| Voltage Rating | 690V ac |
| Handle Colour | Black/Grey, Red/Yellow |
| Accepts Padlocks | Yes |
| Switch Rating | 20kA |
| Length | 180mm |
| Width | 125mm |
| Depth | 105mm |
| Terminal Type | Wire Lead |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +60°C |
