Allen-Bradley 194E-Y16M-1756-6N 16 A 194E Load switch
DescriptionRed Handled Enclosed Switch DisconnectorIngress protection to IP65M25/M32 cable entryFourth pole or auxiliary contact (see stock number 443-0770 typically) can be fitted to switch body in enclosureSpecifications Attribute Value Number of Poles 6P Maximum Current 16A IP Rating IP66 Power Rating 7.5kW Voltage Rating 690V ac Accepts Padlocks Yes Handle...
Description

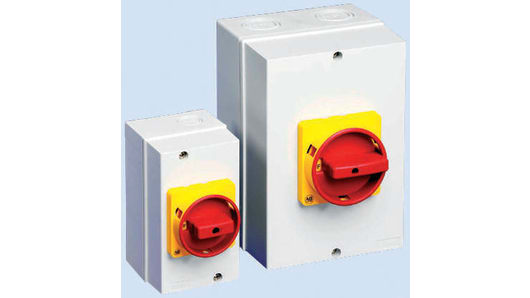

Red Handled Enclosed Switch Disconnector
Ingress protection to IP65
M25/M32 cable entry
Fourth pole or auxiliary contact (see stock number 443-0770 typically) can be fitted to switch body in enclosure
M25/M32 cable entry
Fourth pole or auxiliary contact (see stock number 443-0770 typically) can be fitted to switch body in enclosure
Specifications
| Attribute | Value |
| Number of Poles | 6P |
| Maximum Current | 16A |
| IP Rating | IP66 |
| Power Rating | 7.5kW |
| Voltage Rating | 690V ac |
| Accepts Padlocks | Yes |
| Handle Colour | Black/Grey, Red/Yellow |
| Switch Rating | 20kA |
| Length | 180mm |
| Width | 125mm |
| Depth | 105mm |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -25°C |
| Terminal Type | Wire Lead |
