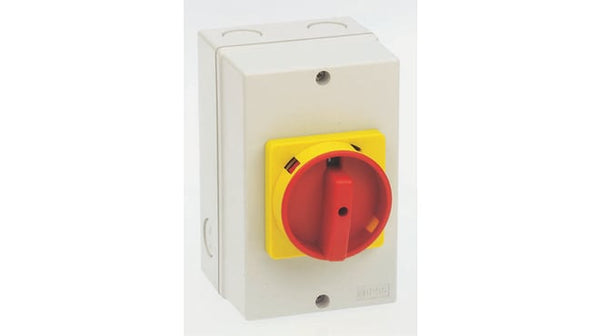

Allen-Bradley 194E-Y100-1753-6N 100 A 194E Load switch

  • ₦0.00
  • DescriptionAllen Bradley Enclosed Switch DisconnectorsThese disconnectors feature durable ABS thermoplastic enclosures. The cover is interlocked to prevent removal when live, reducing risk of electric shock. The handle can be padlocked in up to three positions in the OFF position for greater protection and security. They also have an earth connection...



    Add to quote

    Description

    Allen Bradley Enclosed Switch Disconnectors


    These disconnectors feature durable ABS thermoplastic enclosures. The cover is interlocked to prevent removal when live, reducing risk of electric shock. The handle can be padlocked in up to three positions in the OFF position for greater protection and security. They also have an earth connection in the base of the enclosure.

    Standards: IEC 947, VDE 0660

    Approvals: UL, CSA


    Allen Bradley MCS Range


    The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice. All switch materials can be recycled. Universal terminal screws are fitted for ’Pozidriv’ or flat blade screwdriver. The switching category is AC23A.

    Specifications

    Attribute Value
    Number of Poles 3P
    Maximum Current 100A
    IP Rating IP66
    Power Rating 45kW
    Voltage Rating 690V ac
    Electrical Phase 3
    Accepts Padlocks Yes
    Handle Colour Black/Grey, Red/Yellow
    Switch Rating 25kA
    Length 230mm
    Width 175mm
    Depth 120mm
    Minimum Operating Temperature -25°C
    Maximum Operating Temperature +60°C
    Terminal Type Wire Lead
