Allen-Bradley 194E-E100-1756 100 A 194E Load switch
Allen-Bradley 194E-E100-1756 100 A 194E Load switchDescriptionDescription AC23A rating for Technical Specification differential. 3 pole versions supplied complete with handle.Allen Bradley Non-Fused Isolator Switch, 6 Pole, 100A Current Rating - 194E-E100-1756 Safely disconnect your machinery with this Allen Bradley non-fused isolator switch from Rockwell Automation. With its current rating of...
Allen-Bradley 194E-E100-1756 100 A 194E Load switch
DescriptionDescription AC23A rating for Technical Specification differential. 3 pole versions supplied complete with handle.
Allen Bradley Non-Fused Isolator Switch, 6 Pole, 100A Current Rating - 194E-E100-1756
Safely disconnect your machinery with this Allen Bradley non-fused isolator switch from Rockwell Automation. With its current rating of 100A, it easily handles large electrical loads to isolate heavy-duty hardware. As the device has six poles, it controls up to six appliances at once, so you can rely on it for efficient machine disconnection. An 'off-on' design means the switch has to turn through a full 90° before it activates. This helps to minimise the risk of it accidentally reactivating your equipment, so you stay safe during inspections and maintenance.
• Mounts onto doors and panels for convenient access
• IP66 rating indicates full protection against the dust and high-pressure water jets expected in demanding applications
• Non-fused design works with your existing short-circuit protection to minimise the need for rewiring
• Supports up to three padlocks when fitted with a compatible actuator (261-8271) for secure switching
Standards and Certifications
• UKCA
• CE
• UL
How do I mount an actuator on this isolator switch?

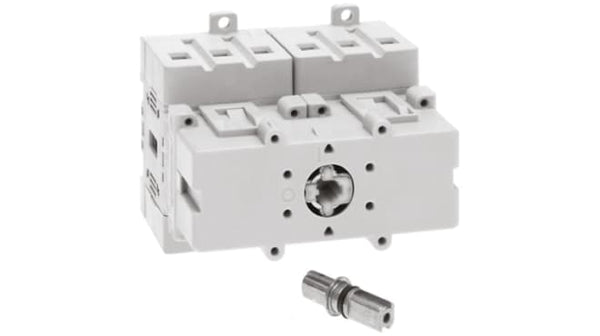

For fast assembly, this device comes with an operating shaft to connect the switch and your chosen actuator.
Allen Bradley MCS Range
The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice. All switch materials can be recycled. Universal terminal screws are fitted for ’Pozidriv’ or flat blade screwdriver. The switching category is AC23A.
Specifications
Allen Bradley Non-Fused Isolator Switch, 6 Pole, 100A Current Rating - 194E-E100-1756
Safely disconnect your machinery with this Allen Bradley non-fused isolator switch from Rockwell Automation. With its current rating of 100A, it easily handles large electrical loads to isolate heavy-duty hardware. As the device has six poles, it controls up to six appliances at once, so you can rely on it for efficient machine disconnection. An 'off-on' design means the switch has to turn through a full 90° before it activates. This helps to minimise the risk of it accidentally reactivating your equipment, so you stay safe during inspections and maintenance.
• Mounts onto doors and panels for convenient access
• IP66 rating indicates full protection against the dust and high-pressure water jets expected in demanding applications
• Non-fused design works with your existing short-circuit protection to minimise the need for rewiring
• Supports up to three padlocks when fitted with a compatible actuator (261-8271) for secure switching
• IP66 rating indicates full protection against the dust and high-pressure water jets expected in demanding applications
• Non-fused design works with your existing short-circuit protection to minimise the need for rewiring
• Supports up to three padlocks when fitted with a compatible actuator (261-8271) for secure switching
Standards and Certifications
• UKCA
• CE
• UL
• CE
• UL
How do I mount an actuator on this isolator switch?
For fast assembly, this device comes with an operating shaft to connect the switch and your chosen actuator.
Allen Bradley MCS Range
The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice. All switch materials can be recycled. Universal terminal screws are fitted for ’Pozidriv’ or flat blade screwdriver. The switching category is AC23A.
Specifications
| Attribute | Value |
| Number of Poles | 6P |
| Maximum Current | 100A |
| Mounting Type | Panel Mount |
| IP Rating | IP66 |
| Power Rating | 45kW |
| Voltage Rating | 690V ac |
| Accepts Padlocks | Yes |
| Series | 194E |
| Switch Rating | 25kA |
| Length | 144mm |
| Width | 72mm |
| Depth | 90mm |
| Maximum Operating Temperature | +60°C |
| Terminal Type | Wire Lead |
| Minimum Operating Temperature | -25°C |
