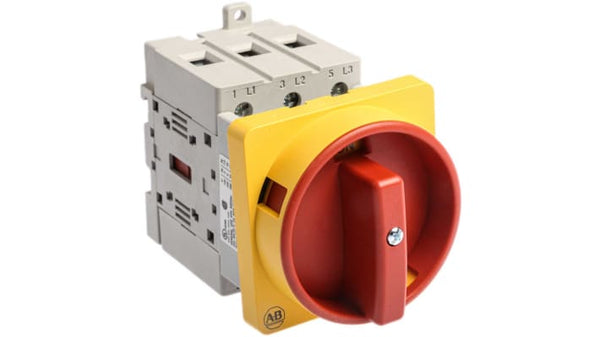

Allen-Bradley 194E-A63-1753-6N 63 A 194E Load switch

  • DescriptionAllen Bradley Switch Disconnectors (Base Mounting)These switches fully conform to IEC204, VDE 0660 and IEC947 and are UL, CSA approved. They are manufactured from thermo-resistant and self-extinguishing materials (UL94-VØ) which are free from Cadmium, Halogen and Asbestos.Allen Bradley MCS RangeThe 194E switch disconnector range forms part of the Modular Control...



    Add to quote

    Description

    Allen Bradley Switch Disconnectors (Base Mounting)


    These switches fully conform to IEC204, VDE 0660 and IEC947 and are UL, CSA approved. They are manufactured from thermo-resistant and self-extinguishing materials (UL94-VØ) which are free from Cadmium, Halogen and Asbestos.


    Allen Bradley MCS Range


    The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice. All switch materials can be recycled. Universal terminal screws are fitted for ’Pozidriv’ or flat blade screwdriver. The switching category is AC23A.

    Specifications

    Attribute Value
    Number of Poles 3P
    Maximum Current 63A
    IP Rating IP66
    Power Rating 22kW
    Voltage Rating 690V ac
    Electrical Phase 3
    Handle Colour Black/Grey, Red/Yellow
    Accepts Padlocks Yes
    Switch Rating 15kA
    Length 80mm
    Width 54mm
    Depth 73mm
    Minimum Operating Temperature -25°C
    Terminal Type Wire Lead
    Maximum Operating Temperature +60°C
