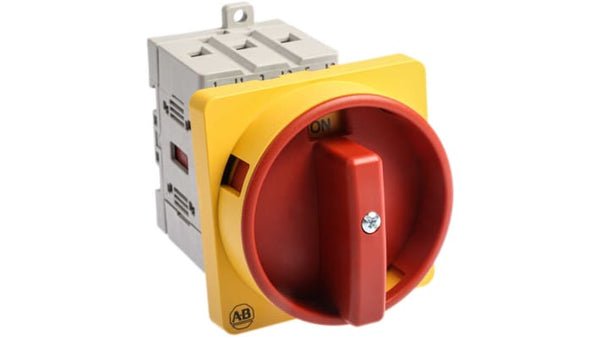

Allen-Bradley 194E-A32-1753-6N 32 A 194E Load switch

  • DescriptionAllen Bradley Switch Disconnectors (Base Mounting)These switches fully conform to IEC204, VDE 0660 and IEC947 and are UL, CSA approved. They are manufactured from thermo-resistant and self-extinguishing materials (UL94-VØ) which are free from Cadmium, Halogen and Asbestos.194E-A32-1753-6N IEC OFF-ON Load SwitchExperience greater protection and reliability with the 194E-A32-1753-6N Non-Fused Switch...



    Add to quote

    Description

    Allen Bradley Switch Disconnectors (Base Mounting)


    These switches fully conform to IEC204, VDE 0660 and IEC947 and are UL, CSA approved. They are manufactured from thermo-resistant and self-extinguishing materials (UL94-VØ) which are free from Cadmium, Halogen and Asbestos.

    194E-A32-1753-6N IEC OFF-ON Load Switch


    Experience greater protection and reliability with the 194E-A32-1753-6N Non-Fused Switch Disconnector by Allen Bradley. This isolator unit functions as a safety measure which breaks an electrical circuit via rotation of the rotary handle.

    The 194E-A32-1753-6N IEC Load Switch has 3 Poles, 32 A maximum current and 15kW power rating. This unit has OFF-ON 90° configuration. The housing features a yellow legend plate and red knob, enabling easy identification. The actuator is sealed to IP65 which ensures that it is dust and water-spray proof. It has a finger-proof body for enhanced safety.

    This ergonomic two-position switch is suitable for connecting and disconnecting an electrical supply and is highly dependable. The 194E range can be used for control applications such as energising solenoids, relays, actuators, magnetic starters, and valves. These versatile units can also be used for power applications such as manual control of direct-on-line motors and isolation of motor branch circuitry.

    The Allen Bradley 194E IEC disconnectors feature the same operating handles as the Bulletin 194L range.

    Features and Benefits:


    • IP2LX Finger-Safe Terminals
    • Base/Din Rail installation
    • Positive-Guided Actuation
    • Suitable as At-Motor Disconnect Switch (UL508)
    • Type N Red/Yellow Actuator

    What is a Non-Fused Switch Disconnector?


    A Non-Fused Switch Disconnector is an electrical safety component which is used to cut power to isolated parts of a circuit, in order to power it down and allow for servicing and maintenance. Instead of using fuses to break the circuit, this type of switch disconnector uses a rotary switch or knife-blade disconnect. This makes them easier to reset as they do not require replacement fuses.

    Rockwell Automation is a global leader in industrial automation and digital transformation, and brings smart manufacturing to life. With a long legacy of creating Allen-Bradley® integrated control and information solutions, we help make you as productive as possible. Our portfolio of sensing, safety and motor management products can support your move towards smart machine applications. Allen-Bradley® IO-Link sensors are data-enabled and communicate with all field buses, providing diagnostic and health information about the device before a machine stops, and enabling quick production changeovers through fast parameter downloads from PLCs into the device. This reduces machine downtime and increases manufacturing OEE. For safety components, products with built-in diagnostics simplify the set-up of the smart device, and reduce maintenance, leading to a more efficient, machine data-driven approach.


    Allen Bradley MCS Range


    The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice. All switch materials can be recycled. Universal terminal screws are fitted for ’Pozidriv’ or flat blade screwdriver. The switching category is AC23A.

    Specifications

    Attribute Value
    Number of Poles 3P
    Maximum Current 32A
    Mounting Type DIN Rail
    IP Rating IP66
    Power Rating 15kW
    Voltage Rating 690V ac
    Electrical Phase 3
    Accepts Padlocks Yes
    Handle Colour Black/Grey, Red/Yellow
    Switch Rating 15kA
    Length 70mm
    Width 45mm
    Depth 59mm
    Terminal Type Wire Lead
    Maximum Operating Temperature +60°C
    Minimum Operating Temperature -25°C
