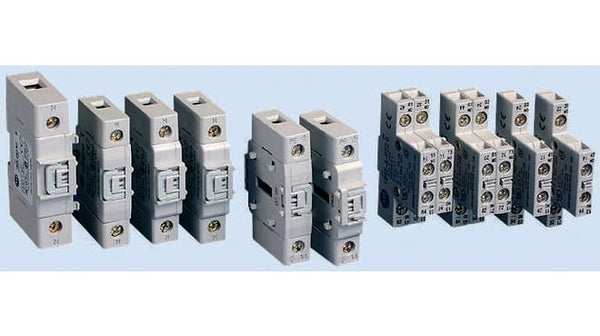

Allen-Bradley 194E-A25-NP Load Switch Additional Pole

  • Description4th Pole, Neutral Terminal & Auxiliary Contacts for Base Mounting SwitchCommon auxiliary blocks can be fitted without the use of tools as can the fourth pole. Auxiliary contacts are rated at 17Vdc, 5mA (DIN 19240)4th pole is early make, late break. Fully rated neutral Insulation voltage Ui 690V. Thermal current...



    Add to quote

    Description

    4th Pole, Neutral Terminal & Auxiliary Contacts for Base Mounting Switch


    Common auxiliary blocks can be fitted without the use of tools as can the fourth pole. Auxiliary contacts are rated at 17Vdc, 5mA (DIN 19240)

    4th pole is early make, late break. Fully rated neutral
    Insulation voltage Ui 690V. Thermal current 12A; rated current 6A
    Operating temperature rating -20 to + 55°C
    Maximum cable size 0.75 to 2.5mm²

    Note

    The 1NO + 1NC auxiliary contacts are available in standard and make-before-break (MBB) versions

    Standards

    IEC 947, VDE 0660

    Approvals

    UL, CSA


    Allen Bradley MCS Range


    The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice. All switch materials can be recycled. Universal terminal screws are fitted for ’Pozidriv’ or flat blade screwdriver. The switching category is AC23A.

    Specifications

    Attribute Value
    Series 194E
