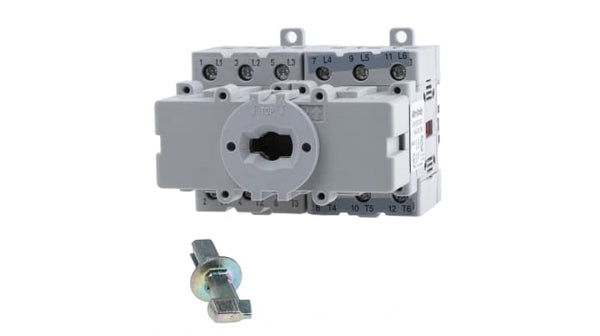

Allen-Bradley 194E-A25-1756 25 A 194E Load switch

  • DescriptionAllen Bradley Switch Disconnectors (Base Mounting)These switches fully conform to IEC204, VDE 0660 and IEC947 and are UL, CSA approved. They are manufactured from thermo-resistant and self-extinguishing materials (UL94-VØ) which are free from Cadmium, Halogen and Asbestos.Allen Bradley MCS RangeThe 194E switch disconnector range forms part of the Modular Control...



    Add to quote

    Description

    Allen Bradley Switch Disconnectors (Base Mounting)


    These switches fully conform to IEC204, VDE 0660 and IEC947 and are UL, CSA approved. They are manufactured from thermo-resistant and self-extinguishing materials (UL94-VØ) which are free from Cadmium, Halogen and Asbestos.


    Allen Bradley MCS Range


    The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice. All switch materials can be recycled. Universal terminal screws are fitted for ’Pozidriv’ or flat blade screwdriver. The switching category is AC23A.

    Specifications

    Attribute Value
    Number of Poles 6P
    Maximum Current 25A
    IP Rating IP66
    Power Rating 11kW
    Voltage Rating 690V ac
    Handle Colour Black/Grey, Red/Yellow
    Accepts Padlocks Yes
    Switch Rating 20kA
    Length 70mm
    Width 45mm
    Depth 59mm
    Maximum Operating Temperature +60°C
    Terminal Type Wire Lead
    Minimum Operating Temperature -25°C
