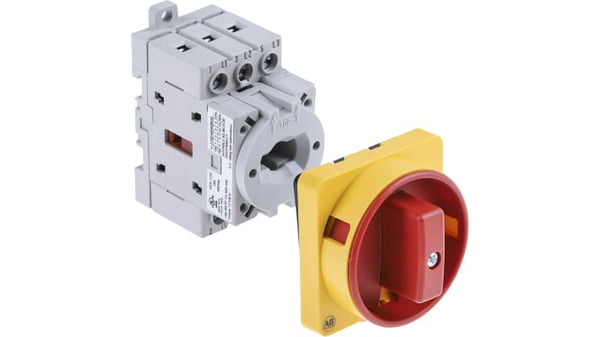

Allen-Bradley 194E-A16-1753-4N 16 A 194E Load switch
DescriptionAllen Bradley Switch DisconnectorsThese narrow format 194E series switch disconnectors are simple to install in limited panel space, they are easily modified and versatile to apply. They have finger safe design to IP20 in all live parts and the terminals, which provide self-centring cable guides. Rated powers of 5.5kW in...
Description
Allen Bradley Switch Disconnectors
These narrow format 194E series switch disconnectors are simple to install in limited panel space, they are easily modified and versatile to apply. They have finger safe design to IP20 in all live parts and the terminals, which provide self-centring cable guides. Rated powers of 5.5kW in AC3 and 7.5kW in AC23A categories (400V) can be switched on a panel surface of only 36mm wide. Rated current is 16A at 690Vac (AC1 and AC21A). They are CE marked, cUL approved, and fulfil the requirements of most international standards of operational safety and reliability. Snap-on modular accessories are available.
Three-pole versions are complete with handle
Six pole versions are switch bodies only, for operating handle order stock no.
Six pole versions are switch bodies only, for operating handle order stock no.
Specifications
| Attribute | Value |
| Number of Poles | 3P |
| Maximum Current | 16A |
| IP Rating | IP66 |
| Power Rating | 7.5 hp, 7.5kW |
| Voltage Rating | 690V ac |
| Electrical Phase | 3 |
| Accepts Padlocks | Yes |
| Handle Colour | Red/Yellow |
| Switch Rating | 20kA |
| Length | 70mm |
| Width | 36mm |
| Depth | 80mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +60°C |
| Terminal Type | Wire Lead |
