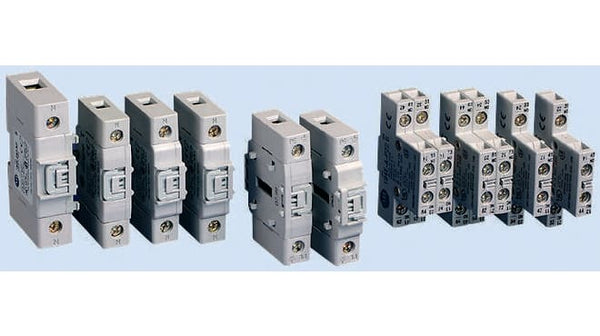

Allen Bradley Auxiliary Contact - 2NC + 2NO, 4 Contact, Side Mount, 6 A
Description4th Pole, Neutral Terminal & Auxiliary Contacts for Base Mounting SwitchCommon auxiliary blocks can be fitted without the use of tools as can the fourth pole. Auxiliary contacts are rated at 17Vdc, 5mA (DIN 19240)4th pole is early make, late break. Fully rated neutral Insulation voltage Ui 690V. Thermal current...
4th Pole, Neutral Terminal & Auxiliary Contacts for Base Mounting Switch
Insulation voltage Ui 690V. Thermal current 12A; rated current 6A
Operating temperature rating -20 to + 55°C
Maximum cable size 0.75 to 2.5mm²
|Number of Contacts||4|
|Normal State Configuration||2NC + 2NO|
|Mounting Style||Side Mount|
|Contact Current Rating||6 A|
|Contact Voltage Rating||17 V dc|
|Pole and Throw Configuration||4P|
|Operating Temperature Range||-20 ? +55 °C|
|Minimum Operating Temperature||-20°C|
|Maximum Operating Temperature||+55°C|
