Allen Bradley Overload Relay - 1NO + 1NC, 2.9 ? 4 A F.L.C, 4 A Contact Rating, 6 W, 690 Vac, Bulletin
Description193-K Miniature Bi-metallic Overload RelayProtects motor against overload and phase lossTrip class 10Auxiliary switch 1N/O and 1N/CStable, shock-resistant direct mounting on 100-K contactorBuilt in trip contact 95//96 and signal contact 97//98Auto/manual reset selectable on devicevisible trip indicationTest/trip actuatorStop actuatorAllen Bradley Overload Relay, 4A Current Rating, 2 Auxiliary Contacts - 193-KB40Keep...
Description
193-K Miniature Bi-metallic Overload Relay
Protects motor against overload and phase loss
Trip class 10
Auxiliary switch 1N/O and 1N/C
Stable, shock-resistant direct mounting on 100-K contactor
Built in trip contact 95//96 and signal contact 97//98
Auto/manual reset selectable on device
visible trip indication
Test/trip actuator
Stop actuator
Trip class 10
Auxiliary switch 1N/O and 1N/C
Stable, shock-resistant direct mounting on 100-K contactor
Built in trip contact 95//96 and signal contact 97//98
Auto/manual reset selectable on device
visible trip indication
Test/trip actuator
Stop actuator

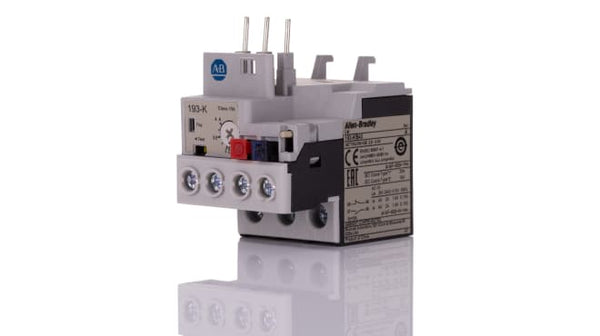

Allen Bradley Overload Relay, 4A Current Rating, 2 Auxiliary Contacts - 193-KB40
Keep your motor running efficiently and safely with this overload relay from Rockwell Automation's Allen Bradley range. The bimetallic device protects attached equipment from overload current and phase loss, preventing damage caused by overheating. It clips onto a contactor from the 100-K series to make a stable and shock-resistant connection. Two auxiliary contacts allow for extra connections to the coil, which makes your wiring easier. You can use this overload relay in applications such as motor starters and motor control centres.
• Operating temperature range of -20°C to +60°C makes it suitable for use in harsh environments
• Screw terminals help you make secure electrical connections that won't be dislodged by vibration
• Choice of automatic or manual reset for flexible use
• Screw terminals help you make secure electrical connections that won't be dislodged by vibration
• Choice of automatic or manual reset for flexible use
Standards and Certifications
• IEC/EN 60947-1,-4-1,-5-1
• UL 508
• CSA 22.2. No. 14
• CE Marked
• cULus Listed (File No. E33916, Guide NKCR, NKCR7)
• UL 508
• CSA 22.2. No. 14
• CE Marked
• cULus Listed (File No. E33916, Guide NKCR, NKCR7)
How does a bimetallic overload relay work?
A bimetallic overload relay like this one includes a strip made of two metals that expand at different rates when heated. Current flows through this strip, and when it exceeds a set value the metals bend, breaking the circuit to shut off the supply to the contactor coil.
Specifications
| Attribute | Value |
| FLC Motor Rating | 2.9 ? 4 A |
| Contact Current Rating | 4 A |
| Control Voltage | 690 Vac |
| Range | Bulletin |
| Series | 193-K |
| Mounting Style | Clip On |
| Power Rating | 6 W |
| Normal State Configuration | 1NO + 1NC |
| Terminal Type | Screw |
| Reset Method | Automatic, Manual |
| Width | 44.9mm |
| Number Of Auxiliary Contacts | 2 |
| Length | 50mm |
| Depth | 78.7mm |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 ? +60 °C |
| Contact Voltage Rating | 690 V ac |
