Allen Bradley Overload Relay - 1NO + 1NC, 1.4 ? 2 A F.L.C, 2 A Contact Rating, 6 W, 690 V ac, Bulletin

  • ₦0.00
  • Description193-K Miniature Bi-metallic Overload RelayProtects motor against overload and phase lossTrip class 10Auxiliary switch 1N/O and 1N/CStable, shock-resistant direct mounting on 100-K contactorBuilt in trip contact 95//96 and signal contact 97//98Auto/manual reset selectable on devicevisible trip indicationTest/trip actuatorStop actuatorAllen Bradley Overload Relay, 2A, 6W - 193-KB20Use this overload relay from...

    Add to quote


    193-K Miniature Bi-metallic Overload Relay

    Protects motor against overload and phase loss
    Trip class 10
    Auxiliary switch 1N/O and 1N/C
    Stable, shock-resistant direct mounting on 100-K contactor
    Built in trip contact 95//96 and signal contact 97//98
    Auto/manual reset selectable on device
    visible trip indication
    Test/trip actuator
    Stop actuator

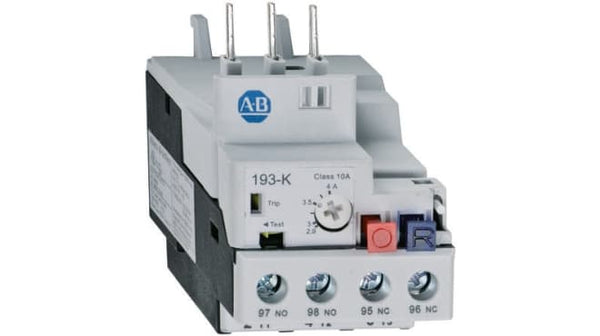

    Allen Bradley Overload Relay, 2A, 6W - 193-KB20

    Use this overload relay from Rockwell Automation's Allen Bradley range to protect your motors from overload and phase loss. It's an electromechanical device that will trip in 10 seconds or less in response to six times its operating current, making it an effective way to prevent damage to your motor. The terminals are positioned to prevent human contact, so you can be sure this overload relay is safe to handle. You'll commonly find components of this type used in large-scale industrial applications.

    • Compact dimensions of 50 (L) x 44.9 (W) x 78.7mm (D) for use in tight spaces• Silver-plated contacts for good conductivity and reliable signal transmission• Wide operating temperature range of -20°C to +60°C for use in harsh environments• Screw terminals for secure connection and ease of installation• Clip-on DIN rail mounting design saves you time and effort

    Standards and Certifications

    • RoHS (Restriction of Hazardous Substances)• IEC (International Electrotechnical Commission)• CSA (Canadian Standards Association)

    How do I reset this relay?

    The relay offers a choice between manual and automatic reset, so you can pick the option that best meets your needs.


    Attribute Value
    FLC Motor Rating 1.4 ? 2 A
    Contact Current Rating 2 A
    Control Voltage 690 V ac
    Range Bulletin
    Series 193-K
    Mounting Style Clip On
    Power Rating 6 W
    Normal State Configuration 1NO + 1NC
    Terminal Type Screw
    Reset Method Automatic, Manual
    Number Of Auxiliary Contacts 2
    Width 44.9mm
    Depth 78.7mm
    Length 50mm
    Minimum Operating Temperature -20°C
    Maximum Operating Temperature +60°C
    Operating Temperature Range -20 ? +60 °C
    Contact Voltage Rating 690 V ac
    Supply Voltage 600 V
