Allen Bradley PLC I/O Module for use with MicroLogix 1500 Series, 4.65 x 2.07 x 3.43 in, Digital, Transistor, 1769, 24
DescriptionDigital Output Expansion ModulesChoice of module typesLED indications of output statusOpto-isolation between outputs and bus and logic circuitryTransistor output modules are source configuredTerminal identification inside coverAllen Bradley Digital Output Expansion Module, 32 Outputs, 24V DC Voltage - 1769-OB32Use this digital output module from Rockwell Automation's Allen Bradley range to expand...
Description
Digital Output Expansion Modules
Choice of module types
LED indications of output status
Opto-isolation between outputs and bus and logic circuitry
Transistor output modules are source configured
Terminal identification inside cover
LED indications of output status
Opto-isolation between outputs and bus and logic circuitry
Transistor output modules are source configured
Terminal identification inside cover

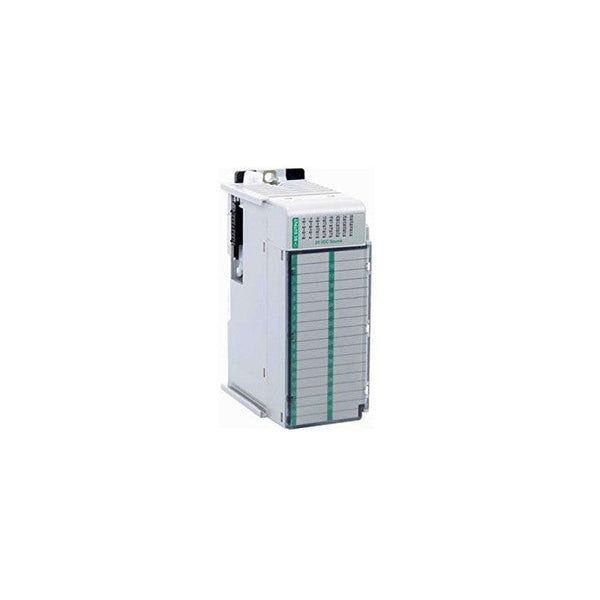

Allen Bradley Digital Output Expansion Module, 32 Outputs, 24V DC Voltage - 1769-OB32
Use this digital output module from Rockwell Automation's Allen Bradley range to expand the capacity of a programmable logic controller (PLC) from the MicroLogix 1500 Series. It features 32 output channels, so you can connect it to multiple devices, making it a versatile choice. Optoisolation between the outputs and bus circuits keeps them separate for smoother signal transmission and enhanced electrical safety. A broad operating temperature range between 0°C and +60°C means this unit can withstand harsh environments. Use it to help automate machine processes in industrial settings.
Features & Benefits
• Low power dissipation of 4.6W for energy-efficient operation
• Maximum surge current of 2.0A to withstand electrical malfunction
• Light-emitting diode (LED) indicators for easy status diagnosis
• Resistant to shock and vibration for added durability
• Maximum surge current of 2.0A to withstand electrical malfunction
• Light-emitting diode (LED) indicators for easy status diagnosis
• Resistant to shock and vibration for added durability
Standards and Certifications
• ANSI/ESD (American National Standards Institute)
• BS (British Standard)
• BS (British Standard)
How do I wire the terminal block of this module?
Connect cables from a field device to the terminal block by loosening the screws and inserting the wires under the terminal pressure plate. Use a spade lug to tighten them for a secure connection. As it's finger-safe, this eliminates the risk of electric shock and enhances user safety.
Specifications
| Attribute | Value |
| Accessory Type | PLC I/O Module |
| For Use With | MicroLogix 1500 Series |
| Output Type | Digital, Transistor |
| Series | 1769 |
| Maximum Operating Temperature | +60°C |
| Mounting Type | DIN Rail |
| Dimensions | 4.65 x 2.07 x 3.43 in |
