Allen Bradley PLC I/O Module for use with MicroLogix 1500 Series, 118 x 35 x 87 mm, Digital, 1769
DescriptionDigital Output Expansion ModulesChoice of module typesLED indications of output statusOpto-isolation between outputs and bus and logic circuitryTransistor output modules are source configuredTerminal identification inside coverAllen Bradley Digital Expansion ModuleThe Allen Bradley 1769 series digital expansion module has 16 digital channel transistor outputs. Each I/O module includes a built-in removable...
Description
Digital Output Expansion Modules
Choice of module types
LED indications of output status
Opto-isolation between outputs and bus and logic circuitry
Transistor output modules are source configured
Terminal identification inside cover
LED indications of output status
Opto-isolation between outputs and bus and logic circuitry
Transistor output modules are source configured
Terminal identification inside cover

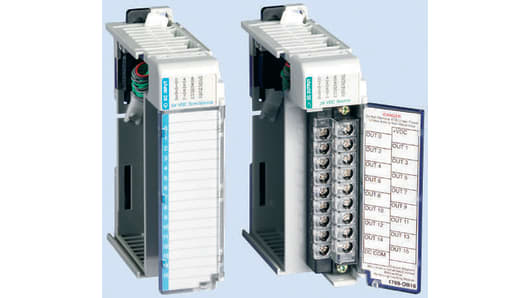

Allen Bradley Digital Expansion Module
The Allen Bradley 1769 series digital expansion module has 16 digital channel transistor outputs. Each I/O module includes a built-in removable terminal block with finger-safe cover for connecting I/O sensors and actuators. This module is used where an application requires more I/O than the built-in I/O provided by the controller. It is compatible with MicroLogix 1500 controllers.
Features and Benefits
LED indications of output status
Opto-isolation between outputs and bus and logic circuitry
Transistor output modules are source configured
High current outputs
Outputs are single ended
Supply voltage is 24VDC
Opto-isolation between outputs and bus and logic circuitry
Transistor output modules are source configured
High current outputs
Outputs are single ended
Supply voltage is 24VDC
Applications
Industrial automation
Robotics
Automobile industry
Robotics
Automobile industry
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
Specifications
| Attribute | Value |
| Accessory Type | PLC I/O Module |
| For Use With | MicroLogix 1500 Series |
| Output Type | Digital |
| Series | 1769 |
| Maximum Operating Temperature | +60°C |
| Mounting Type | DIN Rail |
| Dimensions | 118 x 35 x 87 mm |
