Allen Bradley PLC I/O Module for use with MicroLogix 1100 Series, MicroLogix 1200 Series, MicroLogix 1400 Series, 87 x

  • DescriptionDigital I/O ModulesUp to 6 expansion modules may be added (dependent on power supply loading)Dimensions: H 90 x W 40 x D 87mmNoteInstallations subject to high vibration should be panel mounted (as opposed to DIN rail mounted). A 50mm space should be left on all sides around units to provide...



    Add to quote

    Description

    Digital I/O Modules


    Up to 6 expansion modules may be added (dependent on power supply loading)
    Dimensions: H 90 x W 40 x D 87mm

    Note

    Installations subject to high vibration should be panel mounted (as opposed to DIN rail mounted). A 50mm space should be left on all sides around units to provide adequate ventilation.

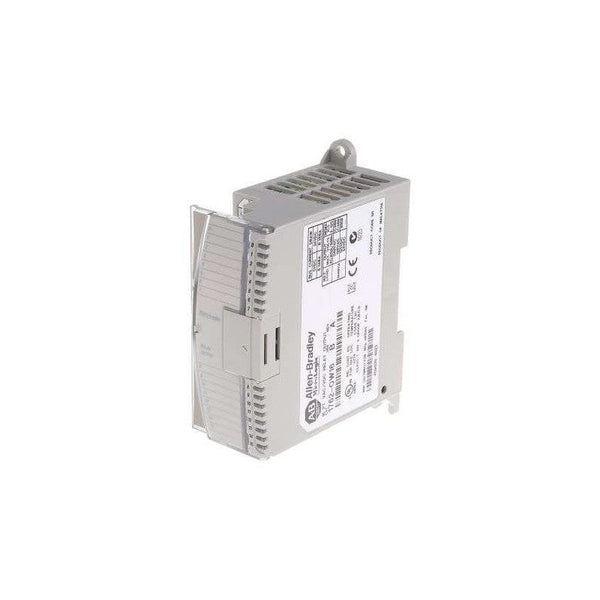

    Allen Bradley I/O Module For Use With MicroLogix 1100, 1200, 1400 Series, 125V DC, 265V AC - 1762-OW16


    Enhance the capability of a MicroLogix PLC (programmable logic controller) with this I/O (input/output) expansion module from Rockwell Automation's Allen Bradley range. The small field unit provides 16 digital channel relay outputs for maximum usage and is compatible with MicroLogix 1100, 1200 and 1400 controllers. The compact design of the unit is space-saving so you get maximum packing efficiency on your DIN rail. It can also be panel mounted, letting you choose the option that best suits your system. As the module doesn't need long cable runs, the risk of signal conditioning is significantly reduced.

    Features and Benefits


    • Wide operating temperature range of 0°C to +55°C so suitable for varied working conditions
    • Small dimensions of 90 (H) x 40.4 (W) x 87mm (D)
    • IP20 (ingress protection) rated enclosure is protected from touch and large dirt particles

    Standards and Certifications


    • ANSI/ESD S20.20:2014 (International Safety Equipment Association)
    • BS EN 61340-5-1:2007 (British and European Standard Specifications)

    Where can I use this device?


    IP20 rated
    ANSI/ESD S20.20:2014
    BS EN 61340-5-1:2007

    This I/O module is suitable for use in clean and dry industrial environments and with circuits where transient voltages are controlled and don't exceed the impulse voltage capability of the product’s insulation. Common applications include robotics and the automobile industry.

    Specifications

    Attribute Value
    Accessory Type PLC I/O Module
    For Use With MicroLogix 1100 Series, MicroLogix 1200 Series, MicroLogix 1400 Series
    Output Type Digital, Relay
    Output Current 10 mA
    Maximum Operating Temperature +55°C
    Dimensions 87 x 40 x 90 mm
