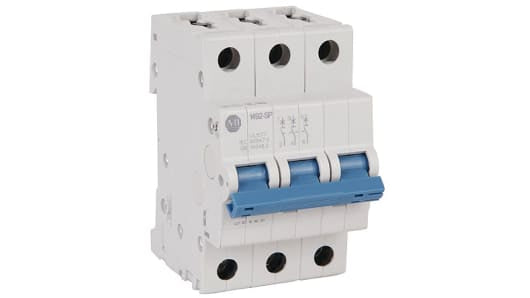

Allen-Bradley 1492-SPM3D500 MCB Supplementary Protector 50 A

  • ₦0.00
  • DescriptionAllen Bradley 1492 SP Series Miniature Circuit Breakers – Type DSafeguard your electrical circuits with the general purpose 1492-SPM Type D Miniature Circuit Breakers by Allen Bradley. These circuit breakers offer high performance and ensure enhanced protection for equipment.These MCB’s have instantaneous breaking time and feature type D tripping. They...



    Add to quote

    Description

    Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type D


    Safeguard your electrical circuits with the general purpose 1492-SPM Type D Miniature Circuit Breakers by Allen Bradley. These circuit breakers offer high performance and ensure enhanced protection for equipment.

    These MCB’s have instantaneous breaking time and feature type D tripping. They are available in 1, 2 and 3 pole versions to suit your application. The 1492-SPM miniature circuit breakers are current limiting and can be easily mounted on a DIN rail. These units are also IP20 finger-safe for greater protection, and they have dual terminals for wiring and bus bar flexibility. These dependable MCB’s help to prevent downtime from nuisance tripping as they also have superior shock and vibration resistance. The 1492-SPM series allows installation of up to six accessories on the same circuit breaker so that you can optimise your safety system with ease.

    Type D MCB’s are usually used for specific industrial and commercial applications with very high inductive loads and where high inrush current frequently occurs, for example with x-ray machines, large winding motors, transformers, and welding equipment. A type D MCB will trip instantly at a rate of ten to twenty-five times its rated current.

    Features and Benefits:


    • Instantaneous break time
    • Can be DIN rail mounted for fast and simple installation
    • Available in 1, 2 or 3 pole versions to meet your requirements
    • Clear visibility of contact state due to indicator window: red for closed, green for open
    • Thermal-magnetic tripping mechanism
    • Screw Terminals
    • Environmentally friendly - RohS compliant and fully recyclable
    • Usable even in extreme ambient conditions due to 40 ?C (104 °F) calibration temperature

    Certifications:


    UL Recognised
    CSA Certified
    CE Marked
    CCC Certified
    VDE Certified
    RoHS Compliant

    Standards:


    UL 1077
    CSA C22.2 No. 235
    EN 60947-2
    GB 14048.2

    Allen Bradley Miniature Circuit Breaker, 10kA Breaking Capacity, 50A Current Rating - 1492-SPM3D500


    Keep yourself and your system safe from overcurrent with this 3-pole circuit breaker from Rockwell Automation’s Allen Bradley range. It ensures a circuit is broken immediately in the event of an electrical fault or abnormality. The unit has a finger-safe design to reduce the risk of shocks during use. An IP20 (ingress protection) rating indicates it's secured against damage from dust and wires or tools over 12mm in size. You can easily clip this circuit breaker onto a DIN rail in a tight or awkward space thanks to its compact dimensions of 75 (W) x 53 (L) x 88mm (D).

    • Toggle switch allows for quick system resets and manual switching off for maintenance
    • Features a colour-changing red/green indicator window for system status monitoring
    • Maximum voltage rating of 480V AC for use in high-energy systems

    Standards and Certifications


    • UL (Underwriters' Laboratories)
    • CSA (Canadian Standards Association)
    • CE (Conformitè Europëenne)
    • CCC (China Compulsory Certificate)
    • EN 60947 (European Norm)
    • VDE (Verband Deutscher Elektrotechniker)
    • RoHS (Restriction of Hazardous Substances)

    How does this circuit breaker work?


    This thermal-magnetic circuit breaker features an internal bimetal element that flexes in response to a temperature rise caused by overcurrent. By changing shape, it breaks the circuit and stops the flow of electricity.


    Allen Bradley MCBs

    Specifications

    Attribute Value
    Number of Poles 3P
    Current Rating 50A
    Tripping Characteristics Type D
    Rated AC Voltage 277 V, 480V
    Series 1492SPM
    Range 1492
    Breaking Capacity at Maximum Voltage Rating 10 kA
    Circuit Breaker Type MCB
    Mounting Style DIN Rail Mount
    Width 75mm
    Length 53mm
    Depth 88mm
    Reset Actuator Type Toggle Switch
    Break Time Instantaneous
    Application General Purpose
    Tripping Mechanism Thermal-Magnetic
    Terminal Contact Type Screw
