Allen-Bradley 1492-SPM3C400 MCB Supplementary Protector 40 A

  • ₦0.00
  • DescriptionAllen Bradley 1492 SP Series Miniature Circuit Breakers – Type CExperience high performance and exceptional protection for electrical circuits with the general purpose 1492-SPM Type C Miniature Circuit Breakers by Allen Bradley.These 1492-SPM MCB’s have type C tripping and fast breaking time to provide a higher level of safety for...



    Add to quote

    Description

    Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type C


    Experience high performance and exceptional protection for electrical circuits with the general purpose 1492-SPM Type C Miniature Circuit Breakers by Allen Bradley.

    These 1492-SPM MCB’s have type C tripping and fast breaking time to provide a higher level of safety for your application. They include screw terminals, are IP20 finger safe, and can be DIN rail mounted for optimal convenience. They are current-limiting and are available in 1, 2 or 3 pole versions, offering more versatility to meet your requirements. They also have dual terminals for wiring and bus bar flexibility. These units have excellent shock and vibration resistance which helps to prevent nuisance tripping, avoiding unnecessary downtime. Up to six accessories can be installed on the same circuit breaker to enable easy optimisation of your safety system.

    Type C MCB’s are suitable for use in commercial and light industrial applications, such as fluorescent lighting and small electric motors, and are designed to trip at currents between five and ten times their rated load.

    Features and Benefits:


    • Available in 1, 2 or 3 pole versions to suit your application needs
    • DIN Rail mountable in any position to ensure easy installation
    • Dependable protection for circuits due to instantaneous break time
    • Indicator window allows clear visibility of contact state: red for closed, green for open
    • Screw Terminals
    • Thermal-magnetic tripping mechanism
    • Can be used in extreme ambient conditions
    • RohS compliant and fully recyclable, offering a more environmentally friendly solution

    Certifications:


    UL Recognised
    CSA Certified
    CE Marked
    CCC Certified
    VDE Certified
    RoHS Compliant

    Standards:


    UL 1077
    CSA C22.2 No. 235
    EN 60947-2
    GB 14048.2

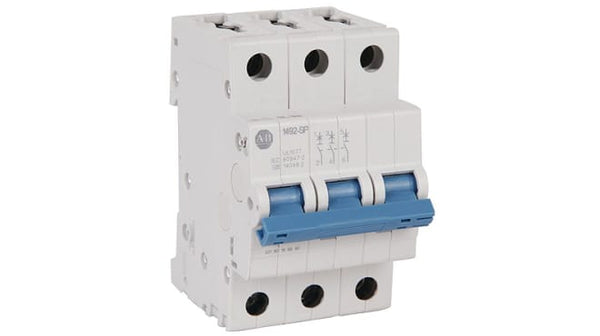

    Allen Bradley Miniature Circuit Breaker, Type C, 40A Current Rating - 1492-SPM3C400


    Stop short circuits from damaging your electrical devices with this miniature circuit breaker from Rockwell Automation's Allen Bradley range. The 3-pole design accommodates 3-phase electrical systems like those typically found in electric motors. As it has a Type C curve, the unit trips when it experiences currents five to ten times its 40A rated load, making it suitable for appliances with high switching surges, such as fans and pumps. A thermal-magnetic tripping mechanism makes sure current overloads are tripped instantaneously to protect equipment and prevent downtime.

    Features & Benefits


    • Ingress protection rating of IP20 makes sure the switch is safe to touch without risk of shocks
    • Can accommodate up to six auxiliary elements for an enhanced safety setup
    • Lifespan of around 20,000 mechanical cycles to provide long-lasting use
    • Clips securely onto a DIN rail to save you installation time

    Standards and Certifications


    • UL (Underwriters' Laboratories)
    • CE (Conformitè Europëenne)
    • CSA (Canadian Standards Association)
    • VDE (Verband der Elektrotechnik)

    What's the operating temperature range of this miniature circuit breaker?


    This miniature circuit breaker has an operating temperature range between -40°C and +70°C, so you can use it safely in harsh industrial climates.


    Allen Bradley MCBs

    Specifications

    Attribute Value
    Number of Poles 3P
    Current Rating 40A
    Tripping Characteristics Type C
    Rated AC Voltage 277 V, 480V
    Range 1492
    Series 1492SPM
    Breaking Capacity at Maximum Voltage Rating 10 kA
    Circuit Breaker Type MCB
    Mounting Style DIN Rail Mount
    Width 75mm
    Length 53mm
    Depth 88mm
    Terminal Contact Type Screw
    Application General Purpose
    Break Time Instantaneous
    Tripping Mechanism Thermal-Magnetic
    Reset Actuator Type Toggle Switch
