Allen-Bradley 1492-SPM3B400 MCB Supplementary Protector 40 A

  • ₦0.00
  • DescriptionAllen Bradley 1492 SP Series Miniature Circuit Breakers – Type BThe 1492-SPM Type B general purpose Miniature Circuit Breakers by Allen Bradley offer excellent protection for electrical circuits. With this series 1, 2, and 3 Pole units are available so that you can find the perfect MCB to suit your...



    Add to quote

    Description

    Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type B


    The 1492-SPM Type B general purpose Miniature Circuit Breakers by Allen Bradley offer excellent protection for electrical circuits. With this series 1, 2, and 3 Pole units are available so that you can find the perfect MCB to suit your application.

    The 1492-SPM series of MCB’s are current limiting and have an instantaneous break time. These models have Type B Tripping characteristics. They are IP20 finger-safe and they also have dual terminals for wiring and bus bar flexibility. Installation is simple as these MCB’s can be DIN rail mounted, and up to six accessories can be fixed on the same circuit breaker to provide a complete electrical safety system. The 1492-SPM series of circuit breakers reduces downtime from nuisance tripping due to their enhanced shock and vibration resistance.

    A Type B miniature circuit breaker will trip instantly at a rate of three to five times its rated current. These MCB’s are often used for small inductive loads where switching surges are very low. They are frequently used in residential or light commercial applications.

    Features and Benefits:


    • Easy and fast installation via DIN rail mounting
    • Instantaneous break time
    • Available in 1, 2 or 3 pole versions
    • Thermal-magnetic tripping mechanism
    • Clear visibility of contact state due to indicator window: red for closed, green for open
    • Environmentally friendly - RohS compliant and fully recyclable
    • Screw Terminals
    • Can function in extreme ambient conditions due to 40 ?C (104 °F) calibration temperature

    Certifications:


    UL Recognised
    CSA Certified
    CE Marked
    CCC Certified
    VDE Certified
    RoHS Compliant

    Standards:


    UL 1077
    CSA C22.2 No. 235
    EN 60947-2
    GB 14048.2

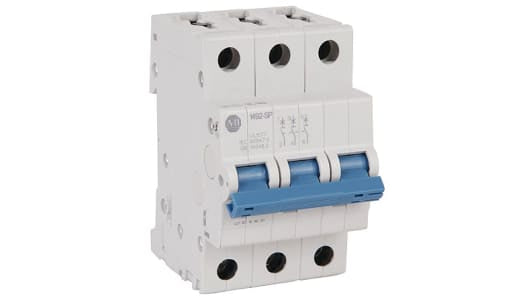

    Allen Bradley MCB, 40A Current Rating, 3 Poles - 1492-SPM3B400


    Improve the safety of your electrical circuits with this MCB from Rockwell Automation's Allen Bradley range. The current-limiting device trips the power when faults occur to protect downstream equipment. It has reliable resistance to shock, which reduces the risk of nuisance disconnections, even in vibrating conditions. As it has type B tripping characteristics, it trips at 3 to 5 times its 40A rating, ensuring instant breaking and reduced downtime. A front toggle switch clearly indicates contact positions for easy problem detection. Use this unit for residential and light commercial electrical installations.

    • Thermal-magnetic tripping mechanism safeguards against overcurrent and short circuits
    • DIN-rail mounting for quick and tool-free installation
    • Screw terminals for secure attachment
    • IP20 rating indicates the unit is touch-proof for safe handling

    Standards and Certifications


    • UL
    • CSA
    • CE
    • CCC
    • VDE

    How much space does this MCB take up on a distribution board?


    It takes up little space, thanks to its compact dimensions of 53 (L) x 75 (W) x 88mm (D). Plus, you can fit up to six accessories on the same circuit breaker for comprehensive electrical safety.


    Allen Bradley MCBs

    Specifications

    Attribute Value
    Number of Poles 3P
    Current Rating 40A
    Tripping Characteristics Type B
    Rated AC Voltage 277 V, 480V
    Series 1492SPM
    Range 1492
    Breaking Capacity at Maximum Voltage Rating 10 kA
    Circuit Breaker Type MCB
    Mounting Style DIN Rail Mount
    Width 75mm
    Length 53mm
    Depth 88mm
    Terminal Contact Type Screw
    Reset Actuator Type Toggle Switch
    Application General Purpose
    Tripping Mechanism Thermal-Magnetic
    Break Time Instantaneous
