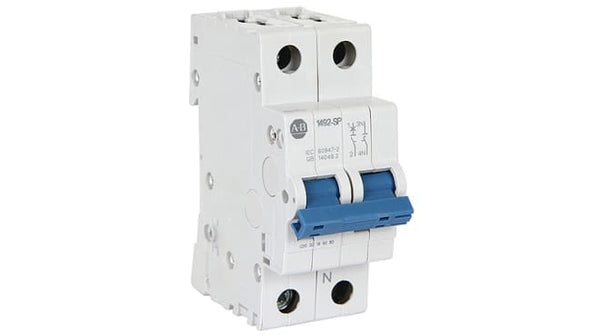

Allen-Bradley 1492-SPM2D320 MCB Supplementary Protector 32 A

  • DescriptionAllen Bradley 1492 SP Series Miniature Circuit Breakers – Type DSafeguard your electrical circuits with the general purpose 1492-SPM Type D Miniature Circuit Breakers by Allen Bradley. These circuit breakers offer high performance and ensure enhanced protection for equipment.These MCB’s have instantaneous breaking time and feature type D tripping. They...



    Add to quote

    Description

    Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type D


    Safeguard your electrical circuits with the general purpose 1492-SPM Type D Miniature Circuit Breakers by Allen Bradley. These circuit breakers offer high performance and ensure enhanced protection for equipment.

    These MCB’s have instantaneous breaking time and feature type D tripping. They are available in 1, 2 and 3 pole versions to suit your application. The 1492-SPM miniature circuit breakers are current limiting and can be easily mounted on a DIN rail. These units are also IP20 finger-safe for greater protection, and they have dual terminals for wiring and bus bar flexibility. These dependable MCB’s help to prevent downtime from nuisance tripping as they also have superior shock and vibration resistance. The 1492-SPM series allows installation of up to six accessories on the same circuit breaker so that you can optimise your safety system with ease.

    Type D MCB’s are usually used for specific industrial and commercial applications with very high inductive loads and where high inrush current frequently occurs, for example with x-ray machines, large winding motors, transformers, and welding equipment. A type D MCB will trip instantly at a rate of ten to twenty-five times its rated current.

    Features and Benefits:


    • Instantaneous break time
    • Can be DIN rail mounted for fast and simple installation
    • Available in 1, 2 or 3 pole versions to meet your requirements
    • Clear visibility of contact state due to indicator window: red for closed, green for open
    • Thermal-magnetic tripping mechanism
    • Screw Terminals
    • Environmentally friendly - RohS compliant and fully recyclable
    • Usable even in extreme ambient conditions due to 40 ?C (104 °F) calibration temperature

    Certifications:


    UL Recognised
    CSA Certified
    CE Marked
    CCC Certified
    VDE Certified
    RoHS Compliant

    Standards:


    UL 1077
    CSA C22.2 No. 235
    EN 60947-2
    GB 14048.2

    Allen Bradley Miniature Circuit Breaker, 10kA Breaking Capacity, 32A Current Rating - 1492-SPM2D320


    Use this miniature circuit breaker (MCB) from Rockwell Automation's Allen Bradley range to protect your industrial machinery against overcurrent. It breaks a circuit instantly if a fault occurs, so prevents damage to downstream equipment. The MCB includes a red/green indicator window that allows you to quickly determine its contact state. It's designed to help you guide conductors during wiring, which makes termination easier and faster. Installation is tool-free and quick thanks to its snap-on DIN rail mounting feet.

    • Dual terminals clamp from both sides to make reliable connections
    • IP20 (ingress protection) rated enclosure that's finger-proof and protected against objects larger than 12mm
    • Toggle switch allows for quick manual resetting
    • Environmentally friendly product that's fully recyclable

    Standards and Certifications


    • UL (Underwriters' Laboratories)
    • CSA (Canadian Standards Authority)
    • CCC (Chinese Standards)
    • CE (Conformitè Europëenne)
    • VDE (Verband Deutscher Elektrotechniker)
    • RoHS (Restriction of Hazardous Substances)

    Is this MCB insulated?


    Yes, this MBC is insulated, which means it's not negatively affected by nearby electronic components. Its insulation also reduces the risk of shocks to operators during installation and handling.

    Can I use this MCB in heavy-duty environments?


    Yes, this MCB resists shocks and vibration, so it's suitable for use in harsh industrial environments.


    Allen Bradley MCBs

    Specifications

    Attribute Value
    Number of Poles 2P
    Current Rating 32A
    Tripping Characteristics Type D
    Rated AC Voltage 277 V, 480V
    Rated DC Voltage 96V
    Series 1492SPM
    Range 1492
    Breaking Capacity at Maximum Voltage Rating 10 kA
    Circuit Breaker Type MCB
    Mounting Style DIN Rail Mount
    Width 75mm
    Length 35mm
    Depth 88mm
    Terminal Contact Type Screw
    Tripping Mechanism Thermal-Magnetic
    Application General Purpose
    Reset Actuator Type Toggle Switch
    Break Time Instantaneous
