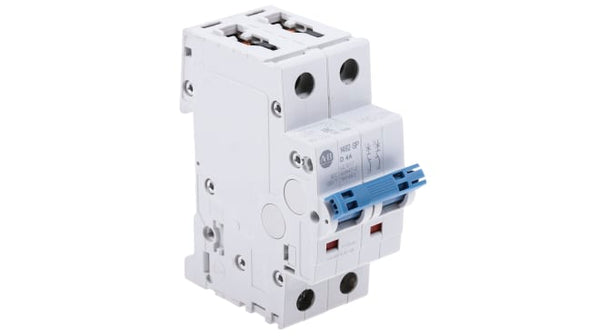

Allen-Bradley 1492-SPM2D040 MCB Supplementary Protector 4 A

SKU: 1492-SPM2D040
Brand: rockwell automations

Availability: In Stock

DescriptionAllen Bradley 1492 SP Series Miniature Circuit Breakers – Type DSafeguard your electrical circuits with the general purpose 1492-SPM Type D Miniature Circuit Breakers by Allen Bradley. These circuit breakers offer high performance and ensure enhanced protection for equipment.These MCB’s have instantaneous breaking time and feature type D tripping. They...

Description

Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type D

Safeguard your electrical circuits with the general purpose 1492-SPM Type D Miniature Circuit Breakers by Allen Bradley. These circuit breakers offer high performance and ensure enhanced protection for equipment.

These MCB’s have instantaneous breaking time and feature type D tripping. They are available in 1, 2 and 3 pole versions to suit your application. The 1492-SPM miniature circuit breakers are current limiting and can be easily mounted on a DIN rail. These units are also IP20 finger-safe for greater protection, and they have dual terminals for wiring and bus bar flexibility. These dependable MCB’s help to prevent downtime from nuisance tripping as they also have superior shock and vibration resistance. The 1492-SPM series allows installation of up to six accessories on the same circuit breaker so that you can optimise your safety system with ease.

Type D MCB’s are usually used for specific industrial and commercial applications with very high inductive loads and where high inrush current frequently occurs, for example with x-ray machines, large winding motors, transformers, and welding equipment. A type D MCB will trip instantly at a rate of ten to twenty-five times its rated current.

Features and Benefits:

• Instantaneous break time
• Can be DIN rail mounted for fast and simple installation
• Available in 1, 2 or 3 pole versions to meet your requirements
• Clear visibility of contact state due to indicator window: red for closed, green for open
• Thermal-magnetic tripping mechanism
• Screw Terminals
• Environmentally friendly - RohS compliant and fully recyclable
• Usable even in extreme ambient conditions due to 40 ?C (104 °F) calibration temperature

Certifications:

UL Recognised
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant

Standards:

UL 1077
CSA C22.2 No. 235
EN 60947-2
GB 14048.2

Allen Bradley Miniature Circuit Breaker, 10kA Breaking Capacity, 4A Current Rating - 1492-SPM2D040

This miniature circuit breaker (MCB) from Rockwell Automation's Allen Bradley range provides overcurrent protection for equipment where branch circuit protection already exists or isn't needed. Its fast breaking time ensures an instant reaction to a fault, which protects equipment from damage and reduces the risk of electric shocks. The unit's resistance to vibration and shock means you don't need to worry about nuisance tripping. Its terminal design helps you avoid wiring misses, making the MCB easier to terminate.

What are MCB’s and how do they work?

• Screw terminals that hold wiring securely, even in vibrating operating conditions
• Quickly snaps onto a DIN rail for fast mounting
• Space-saving as you can mount accessories on the bottom of the unit
• Dual terminals clamp from both sides for connection reliability
• Environmentally friendly as it's fully recyclable

Standards and Certifications

• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Authority)
• CCC (Chinese Standards)
• CE (Conformitè Europëenne)
• VDE (Verband Deutscher Elektrotechniker)
• RoHS (Restriction of Hazardous Substances)

How does this MCB trip a current?

This MCB contains a bimetallic strip that heats up and bends when exposed to unsafe or abnormal current levels. When this happens, its switching mechanism trips and separates its contacts to interrupt the current flow.

Allen Bradley MCBs

Specifications

Attribute	Value
Number of Poles	2P
Current Rating	4A
Tripping Characteristics	Type D
Rated AC Voltage	277 V, 480V
Rated DC Voltage	96V
Series	1492SPM
Range	1492
Breaking Capacity at Maximum Voltage Rating	10 kA
Circuit Breaker Type	MCB
Mounting Style	DIN Rail Mount
Width	75mm
Length	35mm
Depth	88mm
Application	General Purpose
Tripping Mechanism	Thermal-Magnetic
Terminal Contact Type	Screw
Break Time	Instantaneous
Reset Actuator Type	Toggle Switch
