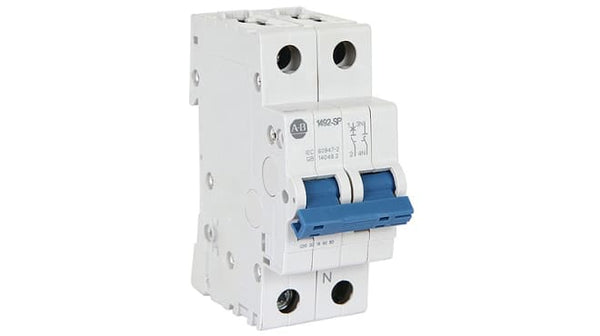

Allen-Bradley 1492-SPM2C200 MCB Supplementary Protector 20 A

SKU: 1492-SPM2C200
Brand: rockwell automations

Availability: In Stock

DescriptionAllen Bradley 1492 SP Series Miniature Circuit Breakers – Type CExperience high performance and exceptional protection for electrical circuits with the general purpose 1492-SPM Type C Miniature Circuit Breakers by Allen Bradley.These 1492-SPM MCB’s have type C tripping and fast breaking time to provide a higher level of safety for...

Description

Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type C

Experience high performance and exceptional protection for electrical circuits with the general purpose 1492-SPM Type C Miniature Circuit Breakers by Allen Bradley.

These 1492-SPM MCB’s have type C tripping and fast breaking time to provide a higher level of safety for your application. They include screw terminals, are IP20 finger safe, and can be DIN rail mounted for optimal convenience. They are current-limiting and are available in 1, 2 or 3 pole versions, offering more versatility to meet your requirements. They also have dual terminals for wiring and bus bar flexibility. These units have excellent shock and vibration resistance which helps to prevent nuisance tripping, avoiding unnecessary downtime. Up to six accessories can be installed on the same circuit breaker to enable easy optimisation of your safety system.

Type C MCB’s are suitable for use in commercial and light industrial applications, such as fluorescent lighting and small electric motors, and are designed to trip at currents between five and ten times their rated load.

Features and Benefits:

• Available in 1, 2 or 3 pole versions to suit your application needs
• DIN Rail mountable in any position to ensure easy installation
• Dependable protection for circuits due to instantaneous break time
• Indicator window allows clear visibility of contact state: red for closed, green for open
• Screw Terminals
• Thermal-magnetic tripping mechanism
• Can be used in extreme ambient conditions
• RohS compliant and fully recyclable, offering a more environmentally friendly solution

Certifications:

UL Recognised
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant

Standards:

UL 1077
CSA C22.2 No. 235
EN 60947-2
GB 14048.2

Allen Bradley Miniature Circuit Breaker, Type C, 20A Current Rating - 1492-SPM2C200

Protect your electrical installations against short-circuit damage with this miniature circuit breaker (MCB) from Rockwell Automation's Allen Bradley range. As it has a type C profile, it trips at five to ten times its 20A rating, so it's suitable for high inductive loads such as small motors and power generators. Use this circuit breaker with up to six additional elements such as an auxiliary contact, a signal contact or a shunt trip to optimise your safety setup.

Features & Benefits

• IP20 (ingress protection) rating indicates the circuit breaker is finger-safe and secured against electric shocks
• Mountable in any position so it's easy to fit into your control setup
• Rear clip secures onto a DIN rail to save you time during installation
• Electrical and mechanical endurance for approximately 20,000 operations for longevity

Standards and Certifications

• CE (Conformitè Europëenne)
• VDE (Verband der Elektrotechnik)
• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Association)

Is this miniature circuit breaker suitable for use in industrial temperatures?

Yes, this miniature circuit breaker has an operating temperature range between -40°C and +70°C, which is wide enough to handle the expected cold and heat of industrial environments.

Allen Bradley MCBs

Specifications

Attribute	Value
Number of Poles	2P
Current Rating	20A
Tripping Characteristics	Type C
Rated AC Voltage	277 V, 480V
Rated DC Voltage	96V
Range	1492
Series	1492SPM
Breaking Capacity at Maximum Voltage Rating	10 kA
Circuit Breaker Type	MCB
Mounting Style	DIN Rail Mount
Width	75mm
Length	35mm
Depth	88mm
Application	General Purpose
Reset Actuator Type	Toggle Switch
Terminal Contact Type	Screw
Break Time	Instantaneous
Tripping Mechanism	Thermal-Magnetic
