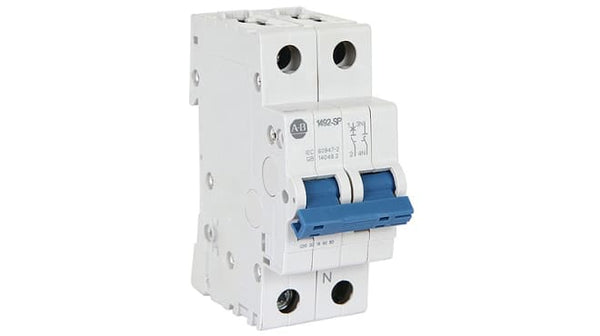

Allen-Bradley 1492-SPM2C160 Mcb Supplementary Protector 16 A

  • DescriptionAllen Bradley 1492 SP Series Miniature Circuit Breakers – Type CExperience high performance and exceptional protection for electrical circuits with the general purpose 1492-SPM Type C Miniature Circuit Breakers by Allen Bradley.These 1492-SPM MCB’s have type C tripping and fast breaking time to provide a higher level of safety for...



    Add to quote

    Description

    Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type C


    Experience high performance and exceptional protection for electrical circuits with the general purpose 1492-SPM Type C Miniature Circuit Breakers by Allen Bradley.

    These 1492-SPM MCB’s have type C tripping and fast breaking time to provide a higher level of safety for your application. They include screw terminals, are IP20 finger safe, and can be DIN rail mounted for optimal convenience. They are current-limiting and are available in 1, 2 or 3 pole versions, offering more versatility to meet your requirements. They also have dual terminals for wiring and bus bar flexibility. These units have excellent shock and vibration resistance which helps to prevent nuisance tripping, avoiding unnecessary downtime. Up to six accessories can be installed on the same circuit breaker to enable easy optimisation of your safety system.

    Type C MCB’s are suitable for use in commercial and light industrial applications, such as fluorescent lighting and small electric motors, and are designed to trip at currents between five and ten times their rated load.

    Features and Benefits:


    • Available in 1, 2 or 3 pole versions to suit your application needs
    • DIN Rail mountable in any position to ensure easy installation
    • Dependable protection for circuits due to instantaneous break time
    • Indicator window allows clear visibility of contact state: red for closed, green for open
    • Screw Terminals
    • Thermal-magnetic tripping mechanism
    • Can be used in extreme ambient conditions
    • RohS compliant and fully recyclable, offering a more environmentally friendly solution

    Certifications:


    UL Recognised
    CSA Certified
    CE Marked
    CCC Certified
    VDE Certified
    RoHS Compliant

    Standards:


    UL 1077
    CSA C22.2 No. 235
    EN 60947-2
    GB 14048.2

    Allen Bradley Miniature Circuit Breaker, Type C, 16A Current Rating- 1492-SPM2C160


    Install this miniature circuit breaker from Rockwell Automation's Allen Bradley range in your electrical control setup to prevent connected electrical devices from short circuits. It's a 2-pole model which can accommodate two channels and AC (alternating current) setups. Its type C design means it trips at five to ten times the rated current, so it's suitable for loads where inductive switching is high such as speakers, solenoids and contactor coils. The switch has an IP20 (ingress protection rating), meaning you can handle it safely without risking electric shock.

    Features & Benefits


    • Screw terminals keep the device protected against impact and vibration causing nuisance tripping
    • Thermal magnetic tripping mechanism for instantaneous current limiting speed
    • Mechanical and electrical endurance for up to 20,000 operations for long-lasting use
    • Operating temperature range of -40°C +70°C for use in industrial environments with wide temperature variances

    Standards and Certifications


    • VDE (Verband der Elektrotechnik)
    • UL (Underwriters' Laboratories)
    • CE (Conformitè Europëenne)
    • CSA (Canadian Standards Association)

    Does this miniature circuit breaker have any special installation features?


    Yes, this miniature circuit breaker comes with a clip for quick and secure mounting on a DIN rail.


    Allen Bradley MCBs

    Specifications

    Attribute Value
    Number of Poles 2P
    Current Rating 16A
    Tripping Characteristics Type C
    Rated AC Voltage 277 V, 480V
    Rated DC Voltage 96V
    Series 1492SPM
    Range 1492
    Breaking Capacity at Maximum Voltage Rating 10 kA
    Circuit Breaker Type MCB
    Mounting Style DIN Rail Mount
    Width 75mm
    Length 35mm
    Depth 88mm
    Reset Actuator Type Toggle Switch
    Break Time Instantaneous
    Terminal Contact Type Screw
    Tripping Mechanism Thermal-Magnetic
    Application General Purpose
