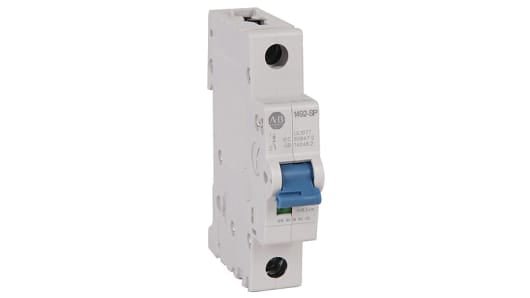

Allen-Bradley 1492-SPM1C400 MCB Supplementary Protector 40 A
DescriptionAllen Bradley 1492 SP Series Miniature Circuit Breakers – Type CExperience high performance and exceptional protection for electrical circuits with the general purpose 1492-SPM Type C Miniature Circuit Breakers by Allen Bradley.These 1492-SPM MCB’s have type C tripping and fast breaking time to provide a higher level of safety for...
Description
Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type C
Features and Benefits:
• DIN Rail mountable in any position to ensure easy installation
• Dependable protection for circuits due to instantaneous break time
• Indicator window allows clear visibility of contact state: red for closed, green for open
• Screw Terminals
• Thermal-magnetic tripping mechanism
• Can be used in extreme ambient conditions
• RohS compliant and fully recyclable, offering a more environmentally friendly solution
Certifications:
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant
Standards:
CSA C22.2 No. 235
EN 60947-2
GB 14048.2
Allen Bradley MCB, Type C Tripping, 1 Pole - 1492-SPM1C400
• IP20 rating indicates user's fingers are protected from electric shock
• Mechanical lifetime of 20,000 operations for lasting use
• Ambient operating temperature range between -25°C and +55°C to withstand demanding environments
Standards and Certifications
• CSA C22.2 No. 235
• EN 60947-2
• CE Marked
• VDE Certified
How do I mount this MCB?
Specifications
Attribute | Value |
Number of Poles | 1P |
Current Rating | 40A |
Tripping Characteristics | Type C |
Rated AC Voltage | 277V |
Rated DC Voltage | 48V |
Range | 1492 |
Series | 1492SPM |
Breaking Capacity at Maximum Voltage Rating | 10 kA |
Circuit Breaker Type | MCB |
Mounting Style | DIN Rail Mount |
Width | 74mm |
Length | 17.5mm |
Depth | 88mm |
Break Time | Instantaneous |
Terminal Contact Type | Screw |
Application | General Purpose |
Tripping Mechanism | Thermal-Magnetic |
Reset Actuator Type | Toggle Switch |
