    Allen-Bradley 1492-J6 6 square mm Feed-Through Terminal Block

    Product Details

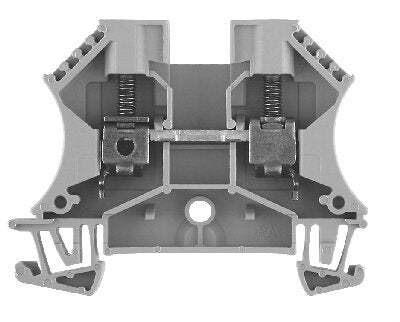

    Rockwell Automation IEC 1492-J6 Single Circuit Feed-Through Terminal Block Experience greater reliability, durability, and simplified installation with the IEC 1492-J6 Single-Circuit Feed-Through Terminal Block by Rockwell Automation. This module meets recognised international IEC standards, ensuring a high-quality solution for your control cabinet. The IEC 1492-J6 is a One-Circuit Standard Feed-Through Terminal Block in grey. It has IP2X finger safe housing to help minimise risk of electric shock. It also has a secure self-locking screw type clamp design with steel clamps and screws which provides improved stability. This terminal block offers ease-of-installation as it can be mounted on a DIN rail. It is designed for single-circuit feed-through applications and helps to provide neater and more efficient organisation of your wiring system. Maximum wire size and rating: UL: 20-8 AWG (50A @600V AC/DC) CSA: 20-8 AWG (50A @600V AC/DC) IEC: 6mm² (41A @800V AC/DC) EEx e II: 6mm²/20-10 AWG (36A @ 550V AC/DC) Features and Benefits: • Counter-sinking of clamping screws • Easy installation or removal from both sides of DIN Rail • Copper current bar and tin-plated surface • Adheres to recognised international IEC, UL, CSA and ATEX standards • Comes with all necessary accessories • Comes with a complete catalogue with all the necessary information required • Has all the necessary compliance required in the industrial applications of the product as per the manufacturers documentation Rockwell Automation Standard Terminal Blocks offer a classic solution for wiring connection and highly efficient distribution of power. They are leading the industry in providing a wide range of products with Short Circuit Current Ratings (SCCRs), such as terminal blocks, power blocks, circuit breakers, contactors, disconnects, and drives. What is a terminal block? A terminal block is a modular component which secures two or more wires together inside an insulated frame. This keeps wiring safely and neatly organised, protecting other components in the circuit and minimising risk of electric shock to people working on or near them. They can be easily connected or disconnected within the block which provides easy troubleshooting and maintenance. They can feature different termination types, such as screw, spring-clamp, and push-in. They are used in a wide range of industrial, commercial, and domestic applications and are known to be a space-saving, cost-effective type of connector.

    Specifications

    Attribute Value
    Number of Ways 2
    Current Rating 50A
    Wire Size 22 ? 8 AWG
    Termination Method Screw Cage
    Mounting Type DIN Rail
    Fused No
    Material Polyamide 6.6
    Voltage Rating 800 V
    Series 1492
    Gender Female
